Venus Displays: How to manage bridge displays in Venus Control Suite?

Topic

How to manage bridge displays in Venus Control Suite?

Environment

  • Product: Displays App
  • Component: Bridge Management
  • Control System: Venus Control Suite (Displays App)

Steps



Access the Bridge Management Menu

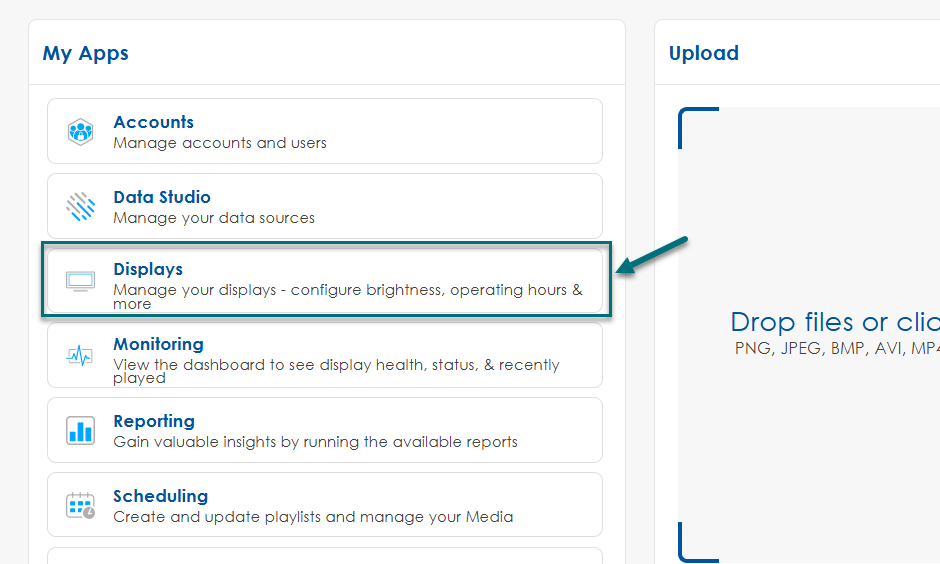

  1. Navigate to the Displays App from the Venus Control Suite Launchpad.

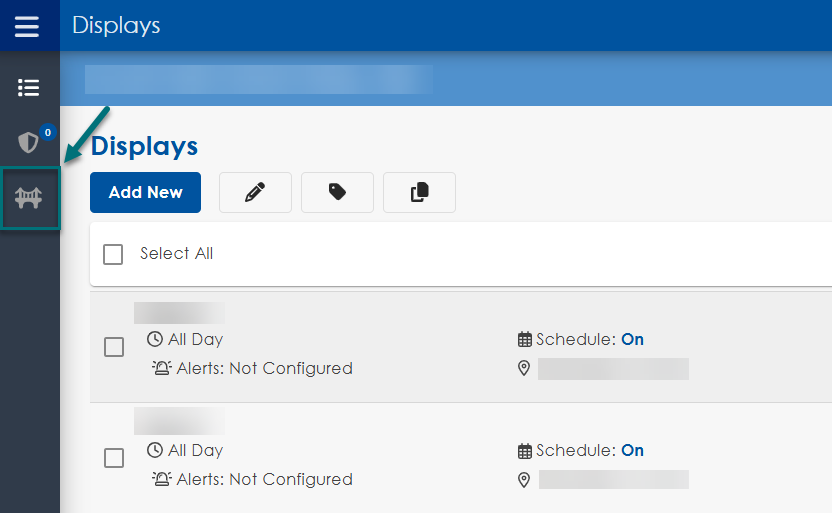

  1. Click the "Bridge Management" icon from the left menu to open the bridge device control panel.

  1. This section allows you to Associate, Edit, Update, Reboot, or Delete your bridge devices.

Associate a Bridge Device

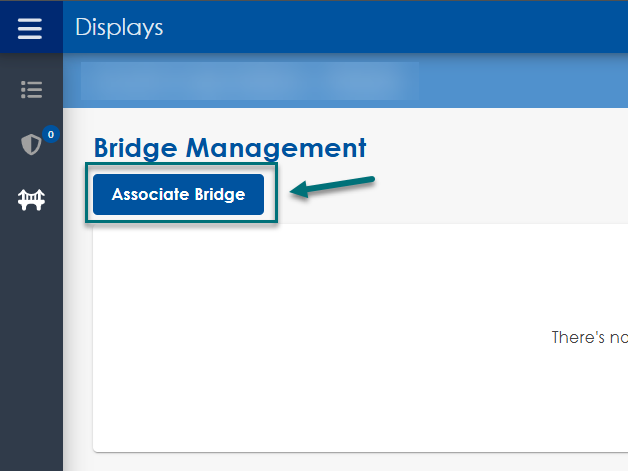

  1. Click "Associate Bridge".

⚠️This action can only be performed by a Daktronics User.

    • A list of unassociated bridges will appear.

    • Select the bridge you want to associate with your display.

  2. Once associated, click Next to proceed.

View and Manage Bridge Details (Optional)

⚠️This action can only be performed by an Account Administrator.

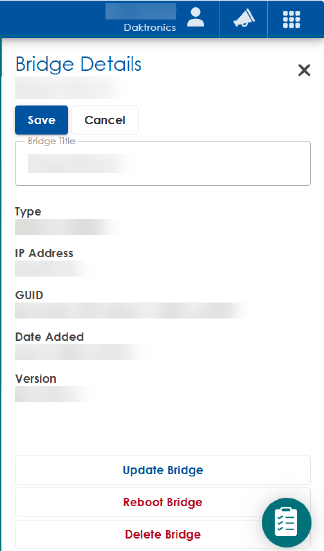

  • Select a bridge to open its Bridge Details menu to view or edit.

    • Update firmware or settings

    • Reboot the bridge

    • Delete the bridge

    • Edit the Bridge Title, IP Address and GUID

    • Click Save

KB ID: 000030149
