Camino: How to edit ratios for bar charts

Topic

  • Camino content

Environment

  • Camino version 7.X.X.X
  • DMP-8000

Steps

  • Bar charts typically use a clip plane or clip rectangle to reveal the bar thus giving the illusion of the bar filling in to illustrate the value in which the chart represents. The ratio refers to the scale applied to the chart to determine how complete the chart is. In the example below the rushing and passing yards ratio on the left is set at 0-550 where 0 yards equals no color bar and 550 yards equals a full colored bar. The same graphic on the right has the rushing and passing yards set to 0-400 giving more color on each teams chart. The total yards in both graphics is set at a ratio of 0-700.

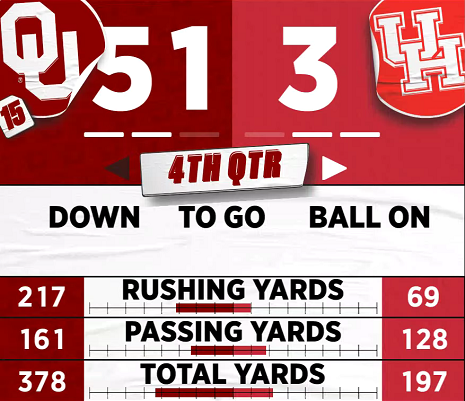

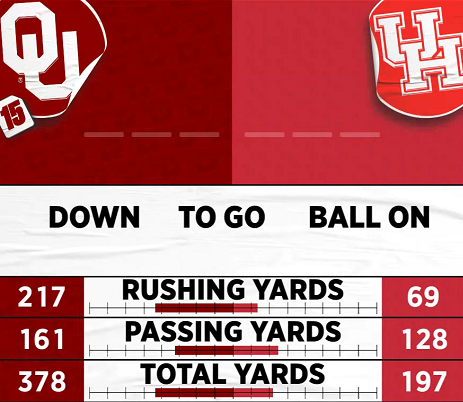

University of Oklahoma Football Stats (Rushing/Passing Set at 0-550)University of Oklahoma Football Stats (Rushing/Passing Set at 0-400)
OU 550.PNG OU 400 w TOP fix.PNG

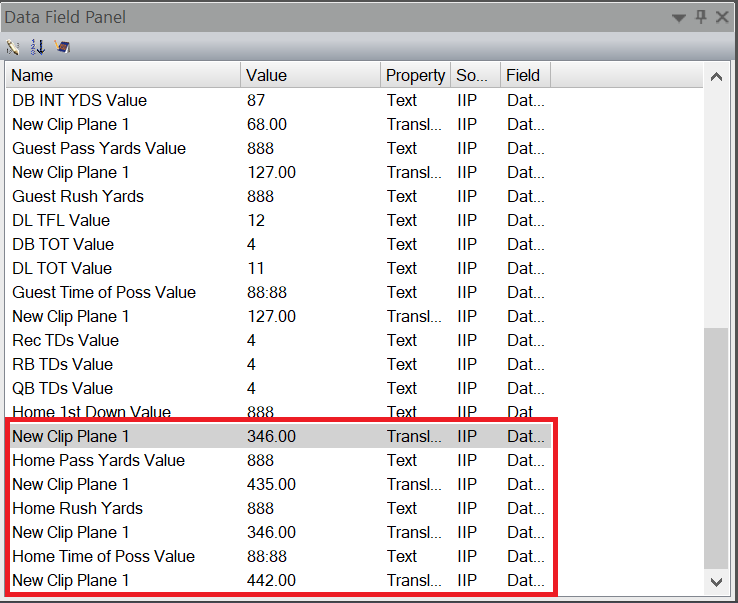

  1. In the Data Field panel, locate the proper clip plane/clip rectangle for the ratio to change.

Bar Chart Ration Change 1A.png

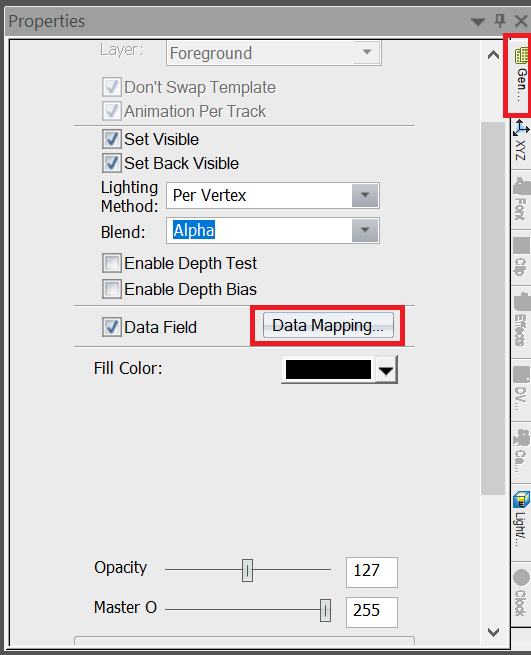

       2. With the clip plane/clip rectangle selected, select the Data Mapping button from the General tab.

Bar Chart Ration Change 2A.png

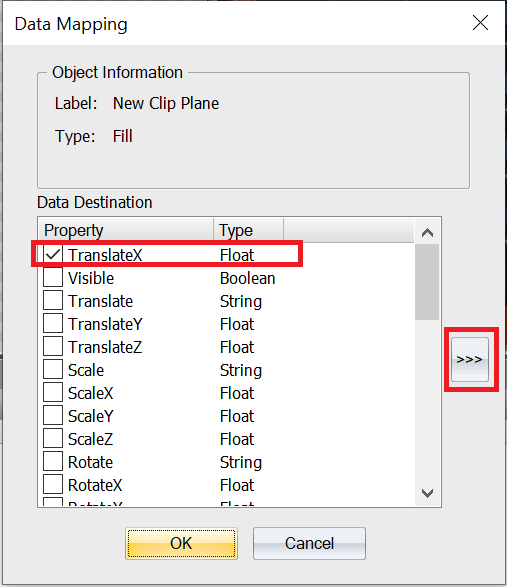

       3. In the Data Mapping window, select the TranslateX property and use the >>> button to show additional parameters for the TranslateX property.

Bar Chart Ration Change 3A.png

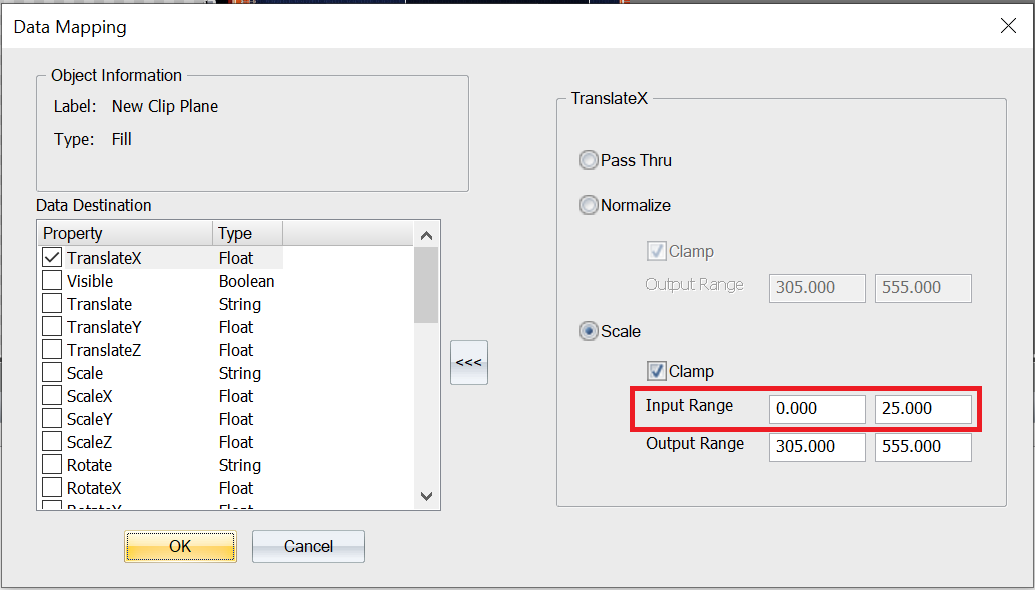

      4. In the Scale section, the Input Range controls the scale of data units on which the bar chart is based (see Suggested Ratios below). Adjust the range accordingly.

Bar Chart Ration Change 4A.png



     5. Repeat for the other team to ensure a ratios are consistent to ensure bars aren't skewed for home and guest teams.

Suggested Ratios

Ratio settings may vary between graphics/sites due to the desired graphic look and what may be considered average for the specific team. It's recommended to keep the ratio consistent between home and guest so as not to skew the bar chart.



Standard Bar Chart Ratios (NCAA Football)

TOP

0-45 minutes

Pass Yards

0-350 yards

Rush Yards

0-350 yards

1st Downs

0-25 first downs



Standard Bar Chart Ratios (NCAA Basketball)

Assists

0-20 assists

Rebounds

0-50 rebounds

Steals

0-12 steals

Points/TO

0-25 points from turnovers





KB ID: 000028931
