Fuelink 5: How do I configure products and prices for my display

Topic

Assign a product name (fuel type or grade) for each price.

Module calibration

Install and test POS interface

Environment

  • Product: Fuelink 5 controller
  • Component:
  • Control System: Fuelight systems

Steps

🔽Use the arrows to open and collapse the following sections.

Connect to the software

Connect to the software user interface through one of these options:

  • Wired (network): Plug a customer-provided CAT5 cable into the NETWORK jack on the controller and navigate to http://fuelink5
  • Wired (direct): Plug a customer-provided CAT5 cable from a computer to the NETWORK jack on the controller and navigate to http://fuelink5.local
  • Wireless (Wi-Fi): From any Wi-Fi enabled smart device, connect to the Fuelink 5 Wi-Fi access point then open a web browser and navigate to http://fuelink5.
    • Enter the Fuelink 5 credentials.
Fuelink 5: How do I install and connect to the controller?

Product and Prices

Configure products

Perform these steps to assign a product name (fuel type or grade) for each price shown.

  1. Go to Configuration > Product Names.
    • POS Type – Select Manual if there is no POS system. Otherwise, select the correct POS protocol. Note: Additional parameters must be configured per the selected POS interface.
    • Product Name – Enter a descriptive name for each product. For example, “Unleaded”, “Diesel (Cash)”, “Diesel (Credit)”, etc.
  2. Click Save Configuration when finished.

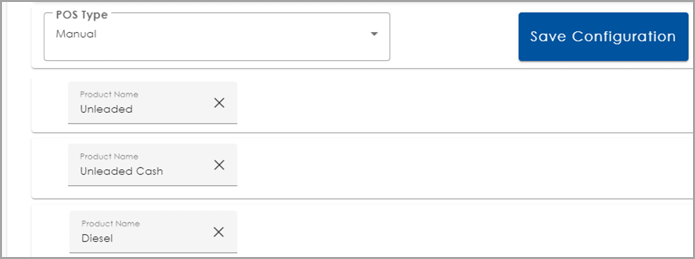

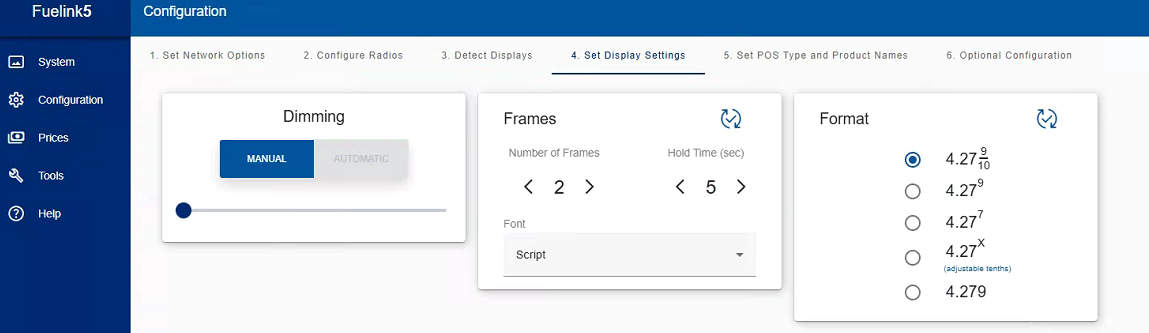

Screenshot 2024-08-29 085841.png

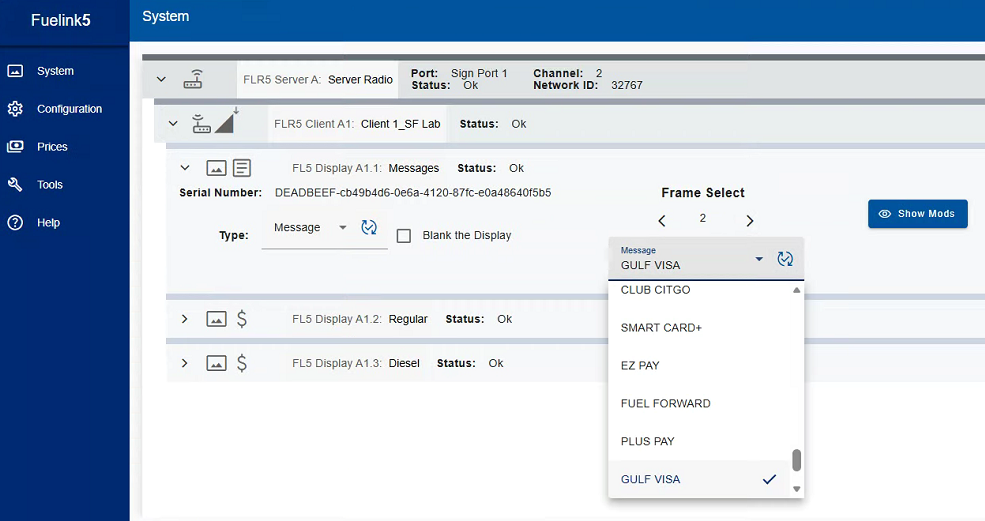

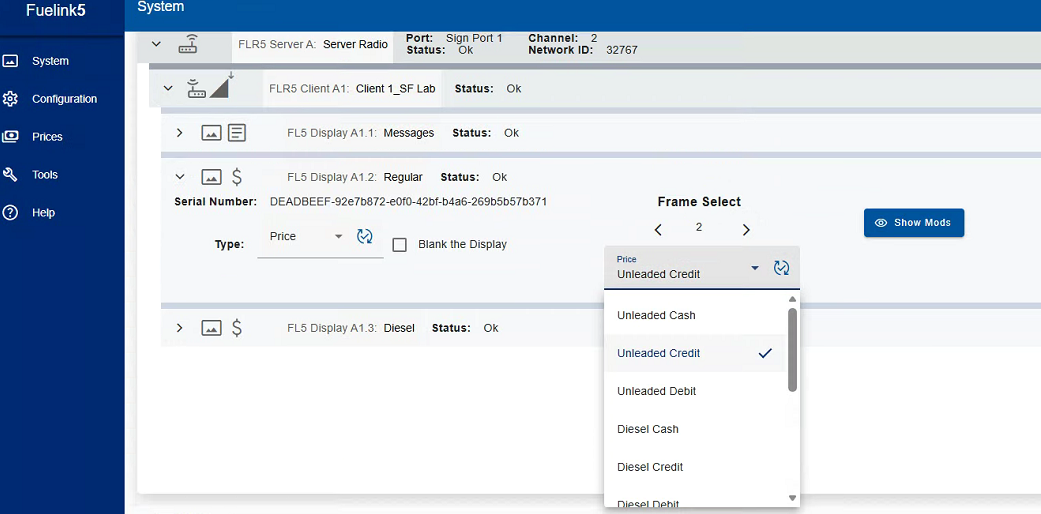

Select products for each frame/message in the system menu

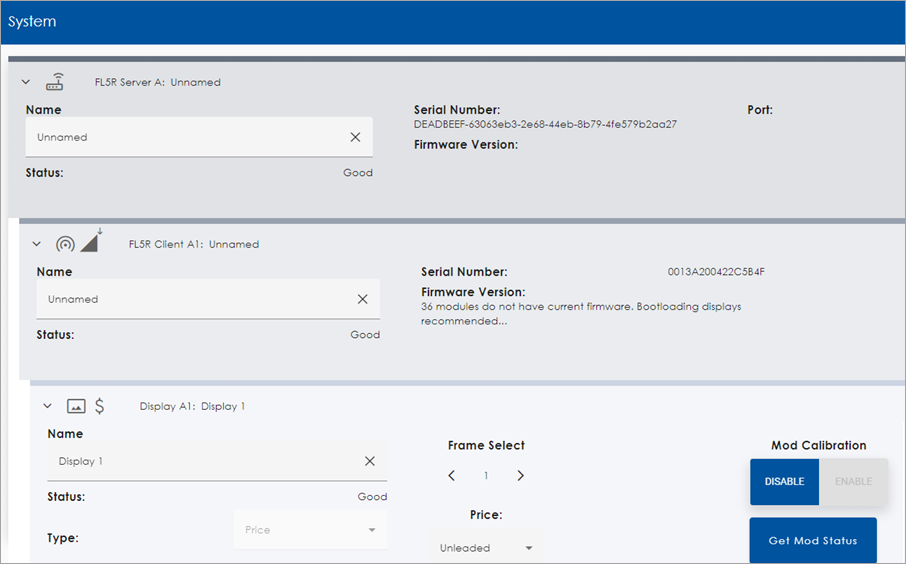

Go to the System menu. Click the arrow (>) to expand the connection method, and then click the next arrow (>) to expand the details of the display(s).

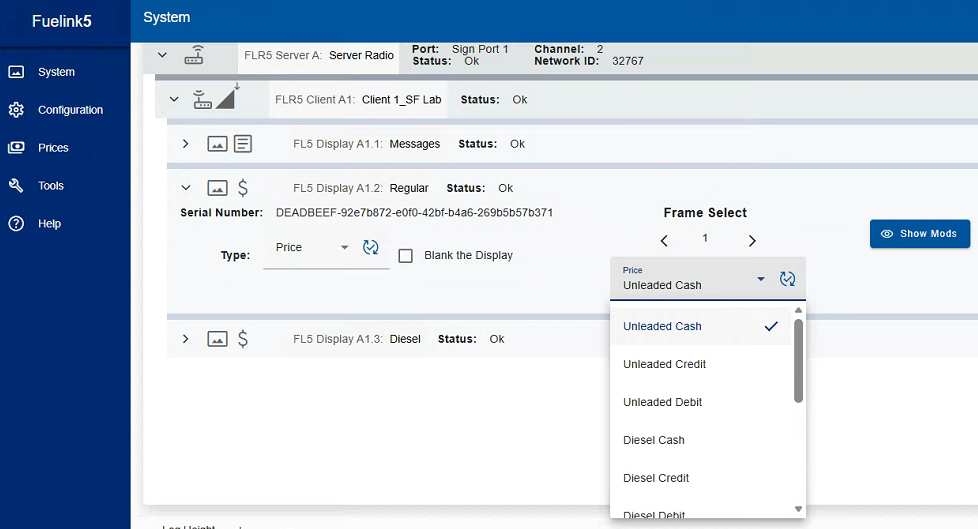

  • For Price displays, select a product for each frame from the drop-down list. Unless cash/credit displays are used, there will just be one product on one frame.

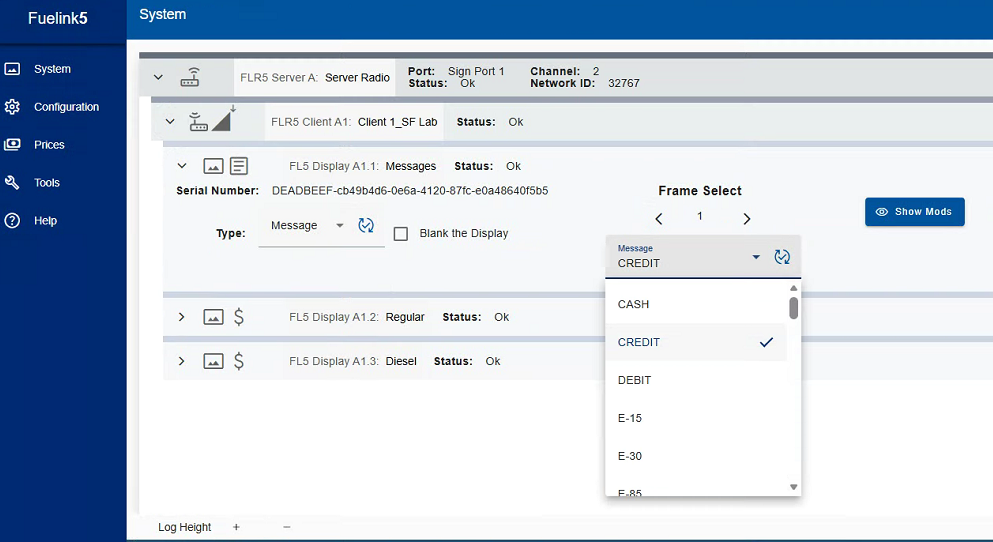

  • For Message (cash/credit) displays, select a message for each frame from the drop-down list.

Screenshot 2024-08-29 085859.png

Configure prices manually

Navigate to the Prices menu to adjust the prices manually.

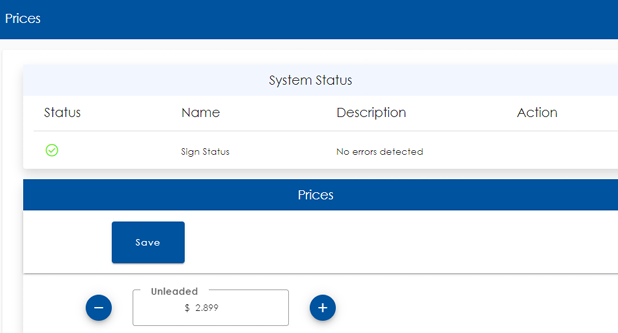

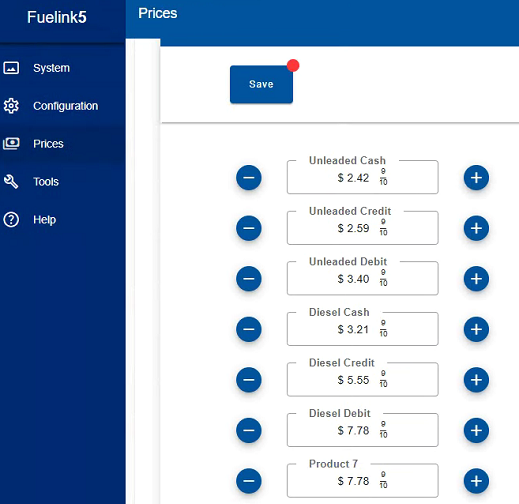

Screenshot 2024-08-29 085916.png

  1. Click in the price field to enter a specific value or use the +/- buttons to adjust the price in one cent increments.
  2. Click Save.
  3. If possible, go look at the displays to verify the prices were correctly updated.

Note: To override prices received from a POS system, click Override and then follow Steps above for manual price adjustment.

Other Maintenance items

Module calibration
Calibration is typically needed to balance the brightness of a new module put into an older display.
  1. Identify which display has the new module, and then locate the display on the System page.
  2. Click ENABLE under Mod Calibration for the desired display.
  3. Adjust the % intensity value for the desired module (modules come default set to 100% intensity).
  4. Once the module intensity reaches the desired brightness compared to the surrounding modules in the display, click DISABLE.
  5. To ensure the new value is properly saved, do not power down the displays for at least 5 minutes!
Install and Test POS Interface

If a POS interface kit was included with the order, connect the cable between the POS and the POINT OF SALE jack on the Fuelink 5 controller. Refer to the Fuelink 5 POS Interface Guide (DD5403695), provided with the interface kit.

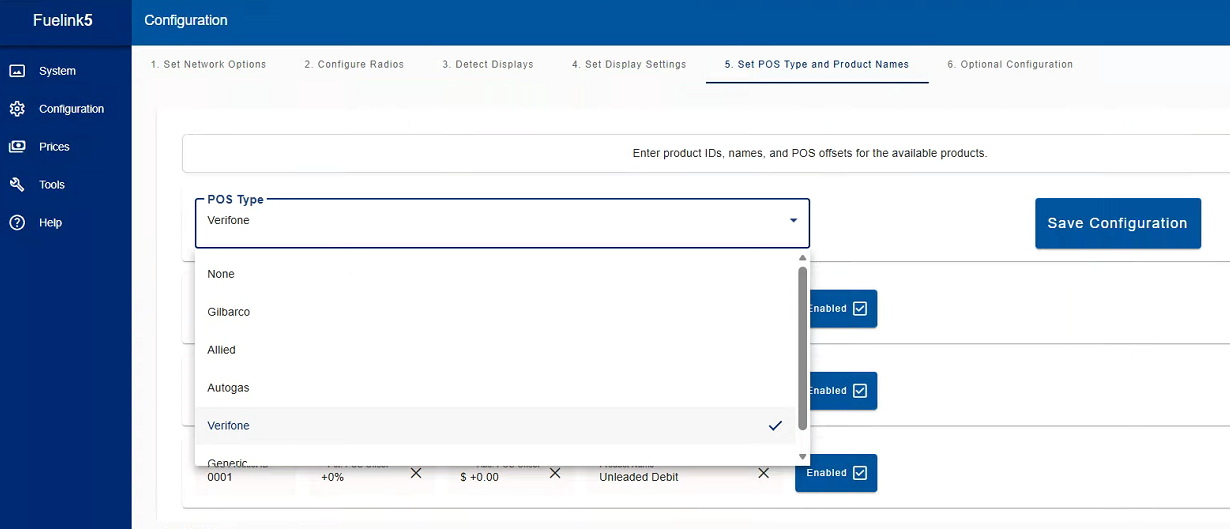

  1. Go to Configuration > Product Names and select the protocol from the POS Type drop-down list.
  2. Enter the parameters to map the product names to POS prices.
    • Some POS types will automatically configure the POS parameters.
  3. If the selected POS type cannot send cash/credit pricing for the same product, configure two identical products but with a POS Offset on the duplicate.
    • Refer to documentation provided with the specific POS interface for more information.
    • Instruct the customer to send a price update from the POS, and then go look at the displays to verify the prices were correctly updated. Be sure to revert back to correct prices in a timely manner.

Related Resources

Fuelink 5: How do I install and connect to the controller?

Fuelink 5: How do I detect displays and format my display

Fuelink 5: How do I troubleshoot
