FrameWrx: How do I leverage layers in the content editor
Topic
The Layers panel in the FrameWrx editor facilitates the easy editing of elements stacked upon one another. When multiple design elements are layered, this panel enables you to effortlessly select, edit, and reposition the underlying elements as needed.
Environment
- Product:
- Component: Content Creation
- Control System: FrameWrx Content
FrameWrx by Daktronics is a cloud-based content design platform that enables anyone, anywhere to access professionally designed templates to elevate their brand for event production and promotions. This timesaving platform simplifies content creation, maximizing the impact of digital video displays and social communication. Event producers of any ability can access top-level, intentionally designed templates, created by the professional digital artists who provide content for professional stadiums.
Steps
To open the Layers panel and select or edit the lower elements, please follow these steps:
- Click on an element that is stacked on top of another element.

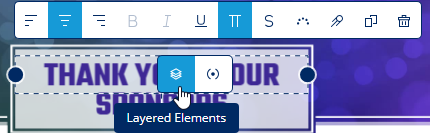

- Select the Layered Elements option that briefly appears.

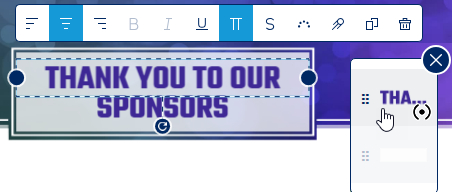

- Select the element to be edited in the panel.
- Edit directly in place, or use the Isolation Mode button that appears in the panel to temporarily bring the element to the foreground.
- Make edits to the element

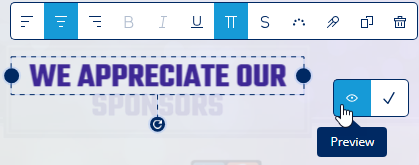

- If in Isolation Mode, optionally select Preview to check out what the edits will look like with the element in its original position OR Done to exit this mode.
Within the Layers panel element positions can be altered by clicking and dragging the move icon to the left of the element and re-arranging the elements as necessary.
Isolation Mode can also be opened by selecting the Isolate option that briefly displays when clicking on an element that is at least partially below one or more other elements, without opening the Layers panel
