All Sport Pro: How do I configure a serial output?

Topic

The All Sport Pro outputs a serial feed for use with fixed digit scoreboards.

Environment

  • Product:
  • Component: Vega style interface box, All Sport pro series 2
  • Control System: All Sport Pro

Steps

Connect to the interface box (VEGA)


Edit Scoreboard

This process is also explained in detail in in the All Sport Pro Manual and All Sport Pro Setup Guide.

  1. Log in by Double-clicking the All Sport Pro desktop icon to open the application in your default web browser.
  2. Enter your Username and Password, and then click Login.

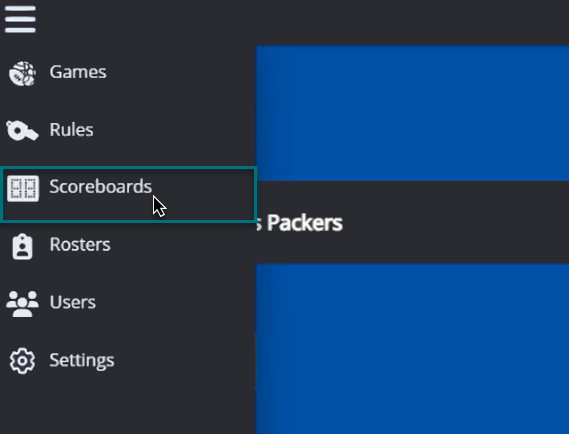

  3. Click the hamburger icon in the top left corner and pick Scoreboard from the slide out.

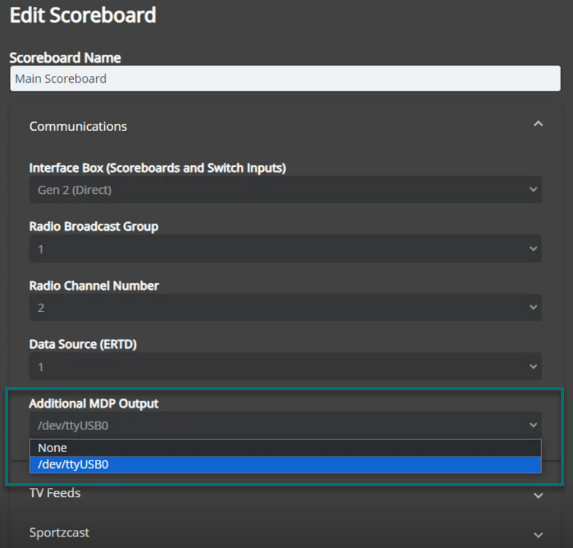

Add an additional MDP Output

The port name is based on order of enumeration.  For example, if plugged into USB 1, choose the UXB0 option.
