FrameWrx: How do I split a video into multiple scene slides

Topic

Any scene can be split into multiple scene slides within the editor. Scene slides are when you split a single video into multiple scenes for the user to customize. For example, if a 30 second video was uploaded that was meant to be split into three 10 second clips, Scene slides can solve this for you. Once split into scene slides, you can add design elements (text, shapes, images, etc.) into each scene slide.
Screenshot 2023-12-12 140606.png

Environment

  • Product:
  • Component: Content Creation, Content Studio Timeline
  • Control System: FrameWrx Content
FrameWrx by Daktronics is a cloud-based content design platform that enables anyone, anywhere to access professionally designed templates to elevate their brand for event production and promotions. This timesaving platform simplifies content creation, maximizing the impact of digital video displays and social communication. Event producers of any ability can access top-level, intentionally designed templates, created by the professional digital artists who provide content for professional stadiums.
MicrosoftTeams-image (17).png


Steps

  1. Create a new video project OR open an existing project.
  2. Click the Upload button OR drag and drop a video directly into the editor.  FrameWrx: How do I add video to a project.
  3. In the right menu, click the Scenes button.

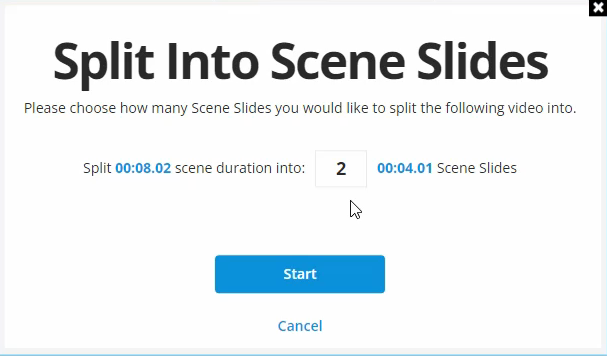

  4. Choose how many scenes to split the video into.
  5. Click Start.

Timing

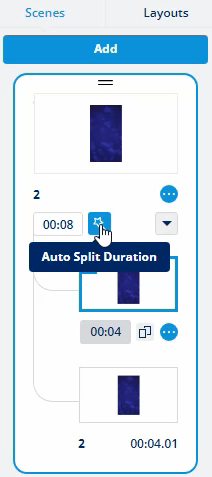

  1. To adjust the timing of each scene, click the Auto Split Duration button which is default selected (the wand with the star.)
  2. Choose the timing desired for any scene slide.

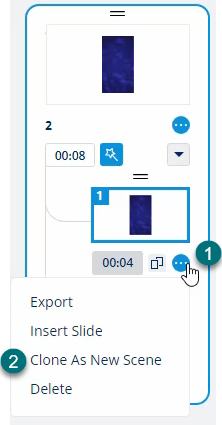

Any Scene Slide can be cloned, and the order can be changed from the right menu.

Related Resources

FrameWrx Sports: How do I loop or combine animations to make an opening video for my game.
