Show Control System: How do I disable NDI in Display Studio
Topic
- This setting is checked by default. If it needs to be disabled, verify that it is disabled after updates.
- This setting covers the entire instance of Show Control. It is not workspace specific.
⚠️Use caution: If unchecked, this will revert monitoring to a legacy method. It is best to consult with Daktronics before proceeding.
Environment
- Product: Show Control System
- Component: Display Studio
- Control System: Show Control version 4.2 or later
Steps
Display Studio settings

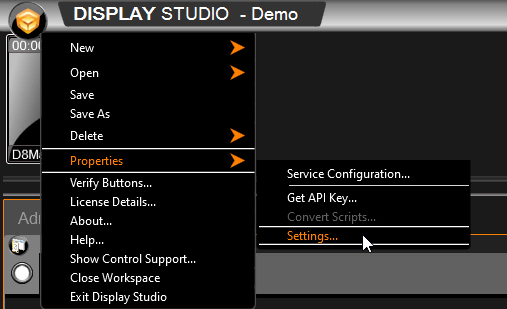

Click the Display Studio Hub on the top left corner to open the Main Menu, then select the Properties submenu. Click Settings.

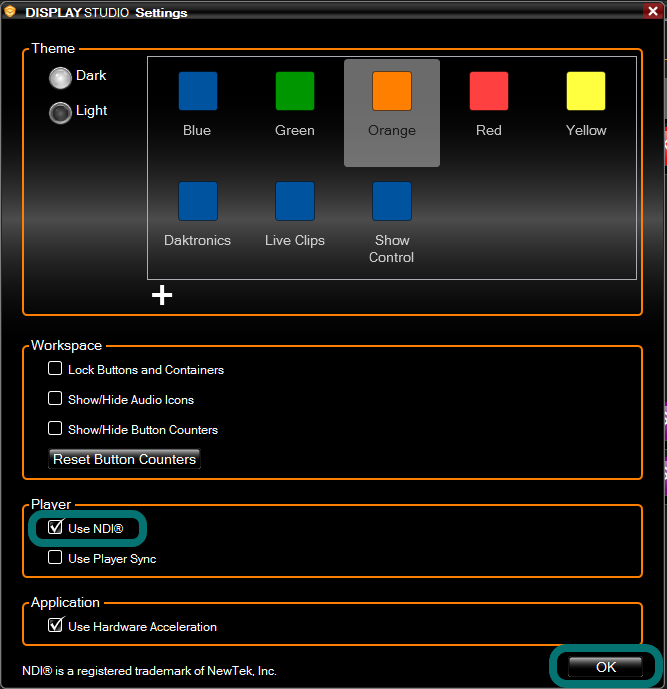

In the Settings window, under Player, click Use NDI to check/uncheck the box.
Note: if your machine does not support NDI, leave this box unchecked.
Click OK to save changes.
KB ID: 000026976
