Show Control System: How do I switch inputs on DI-6000 via a script button?

Topic

  • Input switching on DI 6000 with Display Studio
  • Show Control's Display Studio script buttons

Environment

  • Product:
  • Component: DI-6000 version 37 or later
  • Control System: Show Control version 3.4 or later

Steps

For Scripting basics see: Show Control System: How do I create script buttons?
Within the scripting container, right click and select New Button

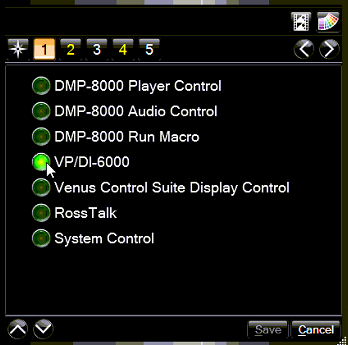

Step 1: Choose VP/DI-6000.
Step 2: Check the appropriate 6000 device. - only the primary will be listed in a primary backup scenarios.
Step 3: Choose Set Input

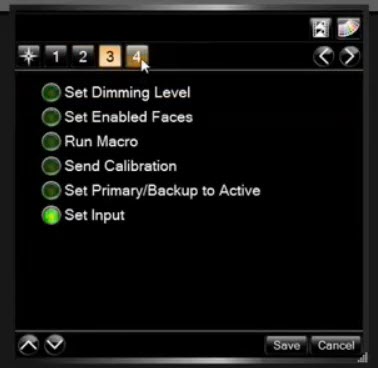

select input.jpg
Step 4: Choose the input.

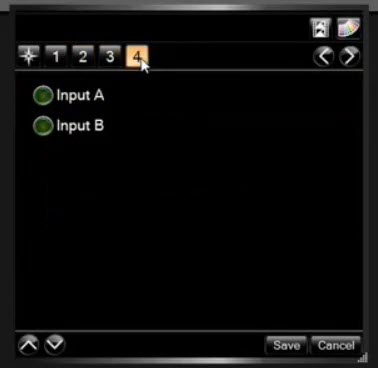

select inputab.jpg
Step 5: Click Save. Trigger the changes by clicking the button.


DI-6000 Input Configuration

Step 1: The inputs are configured under the Advanced Config - http://{DI's IP address}/#advanced

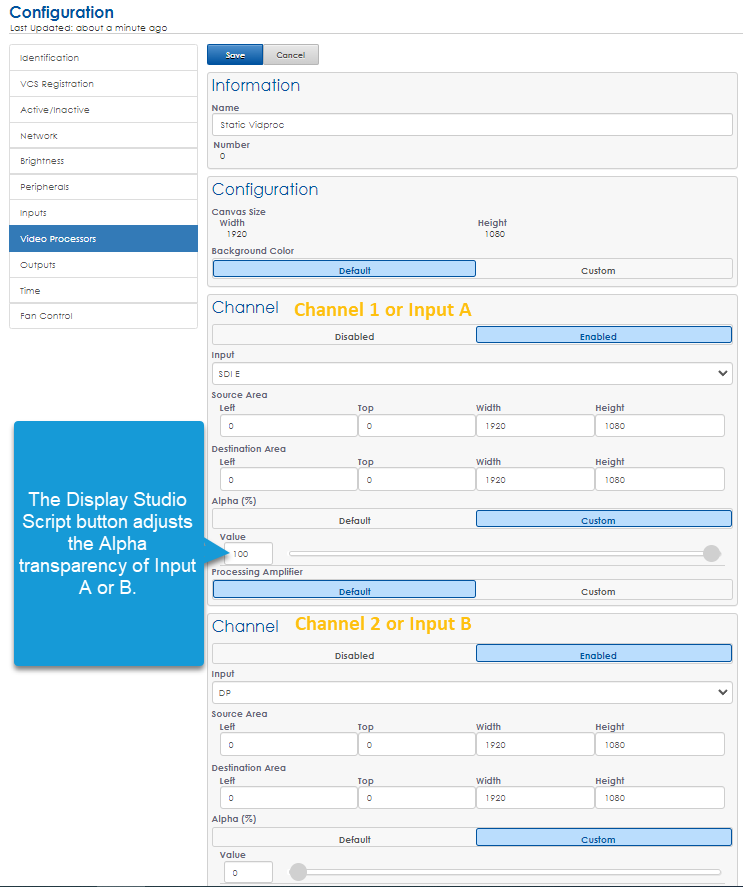

Untitled picture.png

Step 2: Under each channel, change the input and source area to match the correct SDI input.

Step 3: Under each channel, change the destination area to match the specifications of the display.



KB ID: 000026257
