Connect Failed alert in Venus 1500, new Moxa adapter fails loopback

Potential Symptoms

  • Unable to connect to the display over serial connection.
  • Moxa adapter may have been recently replaced.
  • Loopback testing fails at the adapter.
  • COM port is set correctly.

Environment

  • Product Family: Message Displays
  • Product: AF-3200, AF-3220, AF-3400, AF-3700, AF-3500, AF-3550
  • Component: Moxa Adapter
  • Control System: Venus 1500

Cause

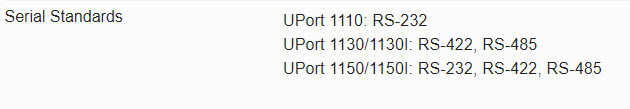

  • Moxa serial adapter models have different serial standards.
  • MOXA.jpg

Resolution

  • Source the correct Moxa adapter that uses the correct standard for the existing communication system.

KB ID: 000025537
