How to configure the Key Digital® KD-FIX418A HDMI fixer box?

Topic

  • How to configure the Key Digital KD-FIX418A HDMI fixer box to improve HDMI signal quality or handle signals with HDCP.

Environment

  • Product Family: Control System
  • Products: A-4842183 -Key Digital® KD-FIX418A 4K/18G HDMI Fixer with L/R & PCM Audio De-Embed Output
  •                   W-4842190 -Key Digital® KD-3.5MDB96 DB9 Adapter Cable

Steps

The HDMI fixer box is used to:
  • improve HDMI signal quality
  • handle signals with HDCP

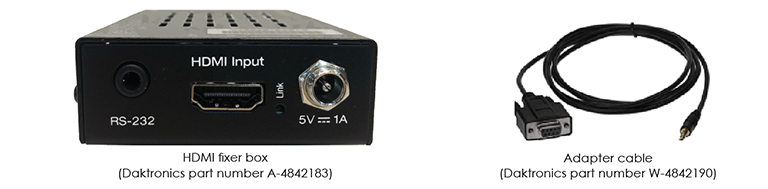

Fixer box and cable.png

1. Connect the serial cable (and USB-to-serial adapter) to the port on the HDMI fixer box.

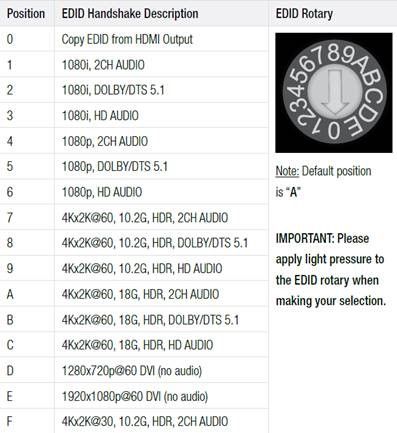

2. Set the EDID rotary dial on the side of the HDMI fixer box to A. Use only light pressure to set the position.

EDID Rotary.jpg


3. Check the HDP (Hot Plug Detect) on the side of the HDMI fixer is OFF.

4. Set the baud rate to 57600 using the serial port program.

5. Set the debug mode to ON via the serial interface.

   a.  Enter sta at the command line prompt to view the status of the KD-FIX418A fixer box.

sta command line.png

  b.  Enter spo dbg on to turn on the debug mode.

spo command line.jpg

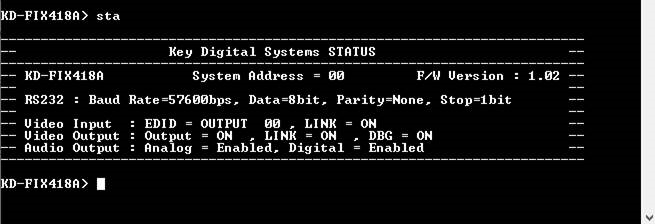

   c. Enter sta again to verify that the debug mode is on.
Note: this setting WILL be maintained through a power cycle

sta command line 2.png

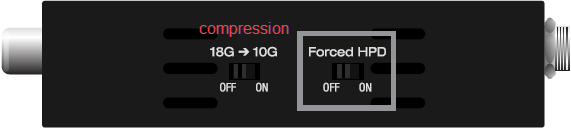

3. Set the Compression to OFF.

Compression setting.png

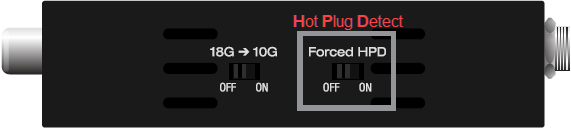

4. Set the HPD (Hot Plug Detect) to ON.

HPD setting.png

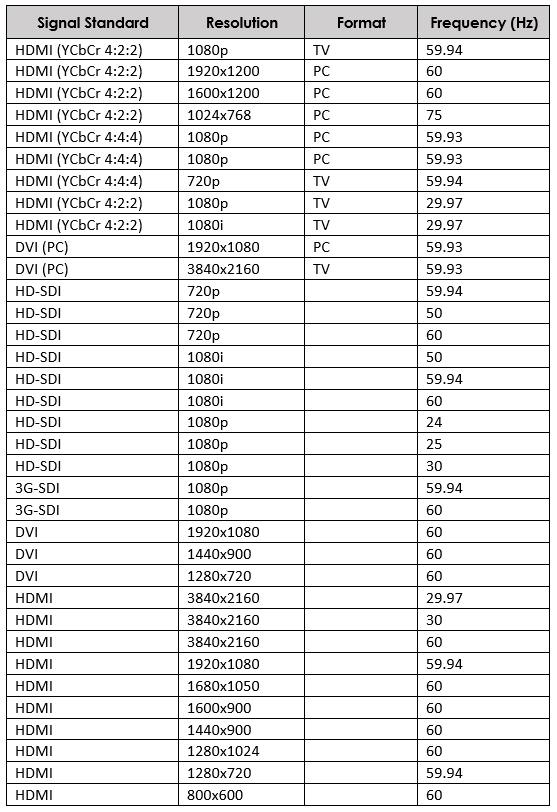

NOTE: Daktronics has tested the KD-FIX418A fixer box with the following video resolutions/standards:

Fixer box testing data.png

KB ID: 000024015
