Display Studio Trigger Widget installation or uninstall
Topic
- Install a missing widget/plugin in Display Studio or uninstall if not needed
- Show Control's Display Studio widgets and plugins
| Plugin and Widget Association | |
|---|---|
| Plugin | Widget |
| M3 | M3 File Manager & Dimming Control |
| DSTI | DSTI |
| DMP-7000 | Dimming Control |
| DMP-8000 |
Volume Control |
| Venus | Venus Control Suite and Fusion Control |
| Last Play | Last Play Widget |
| Ross Talk | RossTalk Widget & RossTalk Commands |
| VP 6000/DI 6000 | Dimming & Face Enable Commands, Execute Triggers |
| VIP-4060 | Dimming Control Widget & ERTD Dimming |
Environment
- Product:
- Components: Plugins / Widgets (i.e. M3, DSTI, DMP-7000, DMP-8000)
- Control System: Display Studio; Show Control System (SCS)
Steps
- Close out of Display Studio and Content Studio
- Open the Control Panel
- Click on Program and Features if in icon view otherwise click Uninstall a program under Programs
- Wait for the program list to populate, then select Display Studio
- Near the top of the Programs & Features window, click on Change
- Run the wizard
- Select the Modify radio button

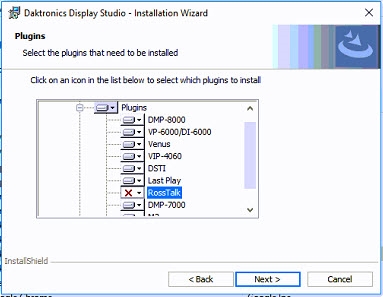

- Eventually you will be brought to the page where the plugins can selected and deselected (if deselected the plugin should have a red X)
- Selected the appropriate plugins depending on setup and finish the wizard - Note: Select "This feature, and all sub-features, will be installed on local hard drive".
Alternative Approach
- Update the Display Studio software; same menu should come up for adding and removing plugins.
KB ID: 000013123
