Temperature message shows up blank on display; VIP password no longer default

Potential Symptoms

  • Temperature message is blank on the display but all client settings are correct on the DMP.
  • VIP shows the correct temperature, but the DMP is showing N/A for temperature.
  • DMP Web configuration is showing VIP is disconnected (red exclamation icon on DMP dashboard Connection Status).
  • DMP Web configuration is showing "Brightness" tile: mode and values all "Data Not Available"
  • DMP Web configuration is showing "Temperature" tile: DISCONNECTED
  • DMP Tuesday morning Watchdog reboot does not cycle the VIP.

Environment

  • Product: GS6, Digital Billboard
  • Component: VIP-5060, VIP-5150, DMP-8050
  • Control System: Venus Control Suite (VCS) - Daktronics hosted

Cause

  • The password on the VIP is set to a custom password and doesn't have the Daktronics default password credentials set on it anymore.

Resolution

  • Pending firmware release

For Temporary Operation

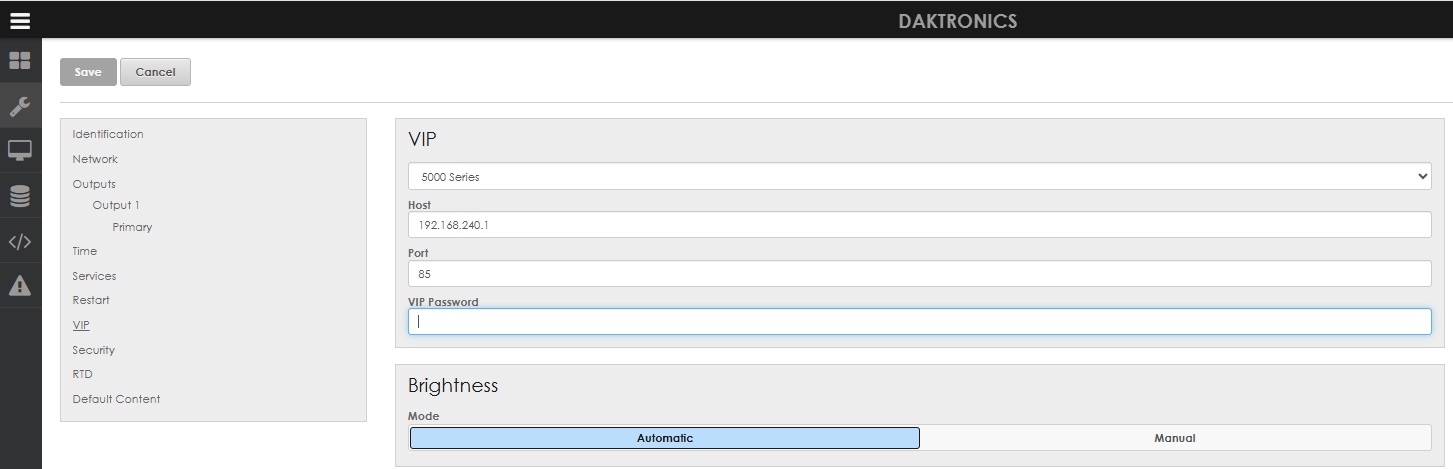

  • Set the VIP login credentials back to the default password.

KB ID: 000011448
