Live Book GFX: What are the common scoreboard feeds in Sport App hockey?

Topic

  • What are the common scoreboard feeds for the Hockey SportApp?

Environment

  • Product: SportApp
  • Component: hockey
  • Control System: Live Book GFX®

Steps

  1. Click on the SportApp Settings from the bottom right of app.
    Sportapp menu.png

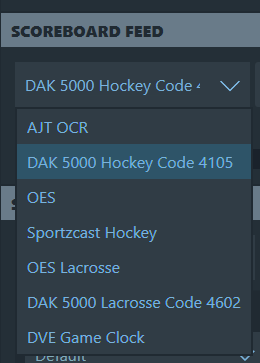

  2. Each scoreboard option can be found under the Scoreboard Feed dropdown.

Common Scoreboard Feeds

AJT OCR

  • The AJT OCR feed is used to get data from a camera pointed at a scoreboard to the score bug.
  • The OCR clock only pulls the game clock only. The BNC cable from the camera connects to input 1 of the Ioxt to get this data to the sportapp.

OES

  • The OES feed takes the clock, period, penalty, and score from the controller and sends it to the score bug.
    • OES Code 5833 is the only code supported by the SportApp
    • Hockey needs to be selected on the controller for the OES scoreboard feed to work

DAK 5000 HOCKEY 4105

  • DAK 5000 TV feed pulls data from the DAK scoreboard controller to the SportApp. It sends game clock, penalty, score and period to the score bug and UI.

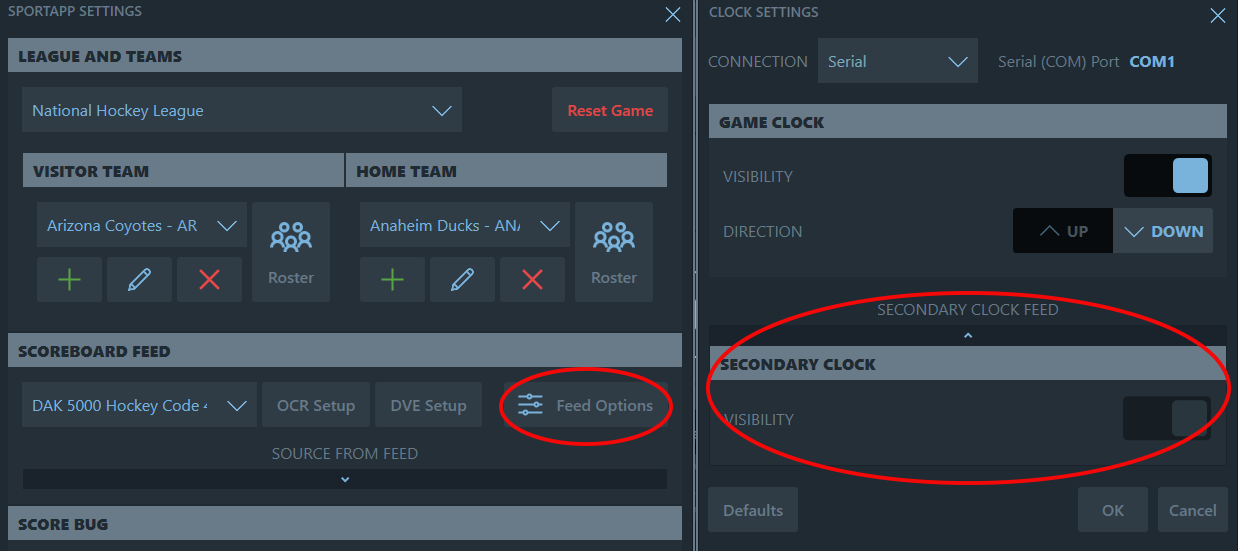

    dak 5000 tv feed hockey.png

Secondary Clock

  • When using Dak lacrosse the secondary clock enabled will show clock data.

SportZcast Hockey

  • SportZcast sends all the clock data plus penalty, period and score to the score bug and the UI. The SportZcast data gets to the app via the network connection.
  • To get the data over the network to the SportApp the sbproto.ini file that contains the feed needs to contain the username and bot file number.

OES LACROSSE

  • The lacrosse feed takes the clock, period, penalty, and score from the controller and sends it to the score bug.
  • The lacrosse feed takes an additional field that is used to show the secondary clock when it is enabled.

DAK 5000 LACROSSE CODE  4602

  • Like Dak field above, the Dak lacrosse field carries extra data to the score bug and the UI. The extra data is for the secondary clock only.

KB ID: 000004619
