All Sport Pro: How to enable Display Studio Buttons to your All Sport Pro Game Tabs and enable FanFare?

Topic

These steps will allow you to use Display Studio Buttons through your AllSportPro UI and link a specific button to a certain score changes, called FanFare.



Environment

  • Product: All Sport Pro UX
  • Components: Profiles, FanFare
  • Control System: Show Control

Use Display Studio buttons through AllSport Pro UI and link display studio buttons to specific score changes from the operator to play – For example,  a 3-point animation when the “+3” is used under Home or Guest separately.

Steps

Enable Display Studio Hot Buttons
  1. Open Display Studio.
  2. In Display Studio, move/copy/import the desired buttons to a unique page in a scripting container.
    • Make sure you select the correct buttons with intended scripts (Fullscreen, Scaled, Top Section versions of buttons)
  3. You will have limited space on the AllSport Pro – It's best to organize a specific group of buttons in Display Studio that you want accessible via All Sport Pro’s UI
  4. Open an active game in All Sport Pro (on Display Studio computer).
  5. Navigate to the Display Studio Tab
  6. Click on the 3-dot icon in the top right corner of the window.
  7. Choose configure.
  8. From the drop down, pick the tab container.
    • Naming Structure listed is – Workspace Name: Page Name: Tab Name
  9. Save, or Move on to "Enable Fanfare" Section below
  10. Refresh the window to see any changes.

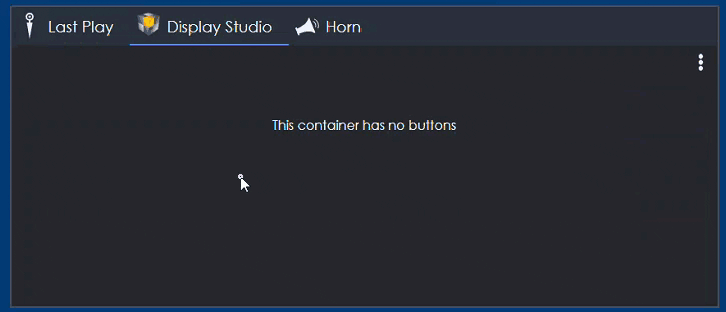

    Here is an animation of the process:
    configure display studio.gif

    Note: Your Display Studio Laptop should remain connected via ethernet with Display Studio open to connect buttons in your All Sport Pro UI

    Enable Fanfare
    1. Open or create a new active game you want to enable Fanfare on your All Sport Pro
    2. Enable the Display Studio Page from the steps above
    3. Tap the 3-dot icon under Display Studio Tab
      • Tap Configure
    4. Select the drop down under the scoring buttons to link a hot button
      • For example, if you only want 3 points to automatically show up when the home team scores +3, select the “Home Score +3” and select the 3 points hot button name.

    Related Resources

    All Sport Pro: How to configure rules profiles?



    KB ID: 000004333
