How to wire an FLD3-2000 single surge j-box system, FL-3000/4500

Topic

  • How do I wire an FLD3-2000 system?
  • How to wire in single surge cards on a FLD3-2000 setup.

Environment

  • Product: FL-3000, FL-4500
  • Component: Single Surge Card
  • Control System: DM-100 with FLD3-2000

Steps

  1. Reference DWG-3117935, Riser Diagram; Multiple Pylon Wired In Series for JBX locations.

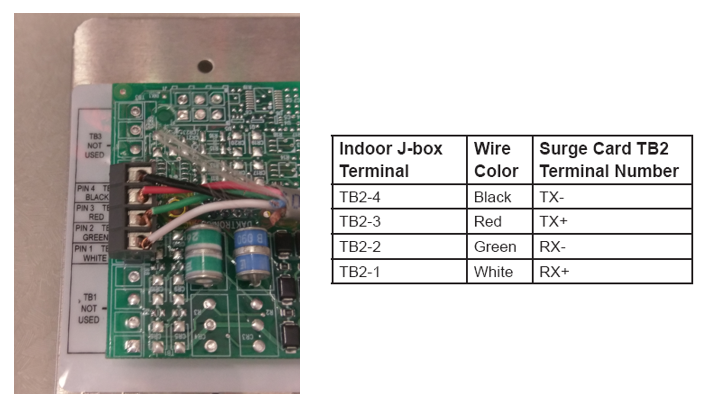

  2. Locate JBX1 (indoor surge card 0P-1611-0502) and wire TB2 following the figures below:

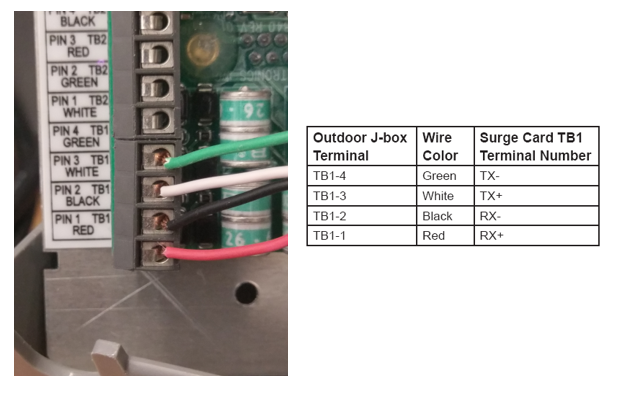

  3. Locate TB1 on JBX2 (outdoor surge card 0P-1611-0507) and wire TB1 following the figures below:

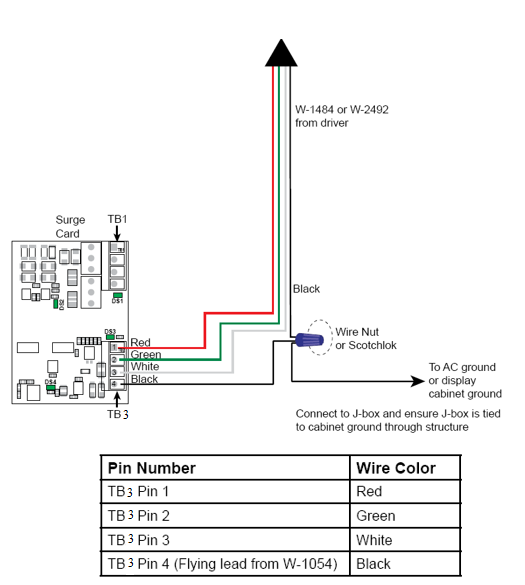

  4. Locate TB3 on JBX2 (outdoor surge card 0P-1611-0507) and wire the stranded end of W-1484 or W-2492 to TB3 following the figures below:
  5. Plug W-1484 or W-2492 into J16 on the driver board.
  6. Locate TB3 on JBX3 (outdoor surge card 0P-1611-0507) and wire the stranded end of W-1484 or W-2492 to TB3 following the figures found in step 4.
  7. Plug W-1484 or W-2492 into J16 on a different driver board.
  8. Locate TB1 on JBX3 and TB1 on JBX4 and wire as follow:
    • JBX3 TB1                                                             JBX 4 TB1
    • PIN 1 (RX+)---------------------------------------PIN 3 (TX+)
    • PIN 2 (RX-)----------------------------------------PIN 4 (TX-)
    • PIN 3 (TX+)---------------------------------------PIN 1 (RX+)
    • PIN 4 (TX-)----------------------------------------PIN 2 (RX-)
  9. Locate TB3 on JBX4 (outdoor surge card 0P-1611-0507) and wire TB3 following the figures found in step 4.
  10. For any more pylons, repeat steps 5-9.

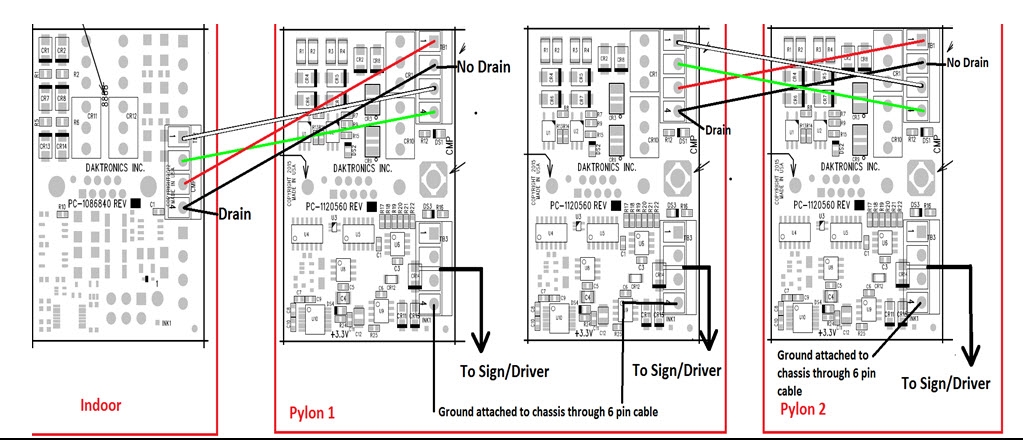

See the following DWG for an example of how the wiring is done for a multiple structure system including how to wire the drains:

Correct wiring fl-3000 hardwire.jpg

KB ID: 000002028
