Camino: How to change a templates layer in Camino
Topic
- How do I change a templates layer in Camino?
Environment
- Product: SportApp, Camino
- Component:
- Control System: Live Book GFX®
Steps

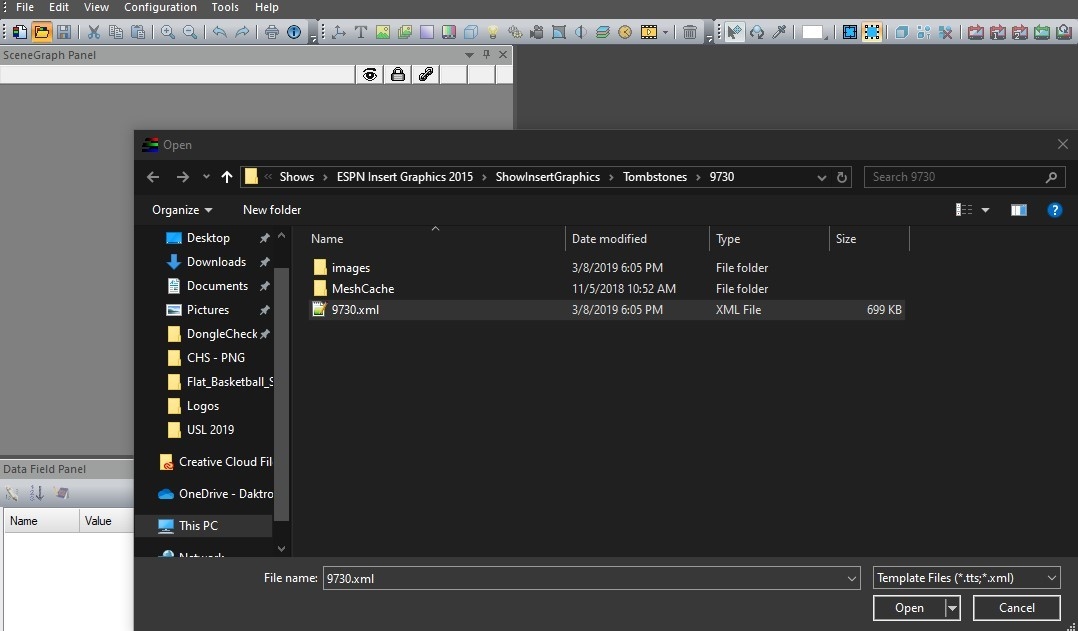

- Launch Camino and load a file from the baseball insert graphic folder. The folder is located at C:\ProgramData\AJT Systems\MAM\Baseball\Shows\ESPN Insert Graphics 2015\ShowInsertGraphics\Tombstones\9730

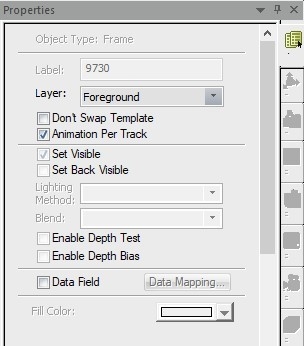

- When the template loads, go to the property panel and view the general tab.

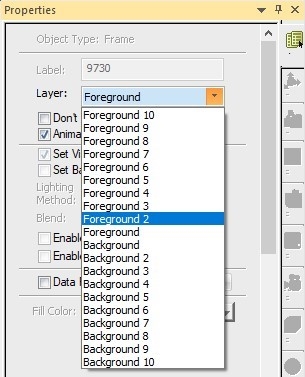

- Click on the layer drop down and choose a new layer for the template. Choose foreground 2 for the new layer.

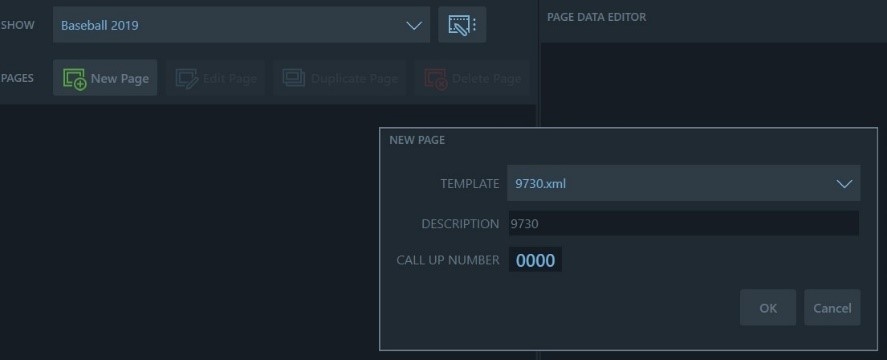

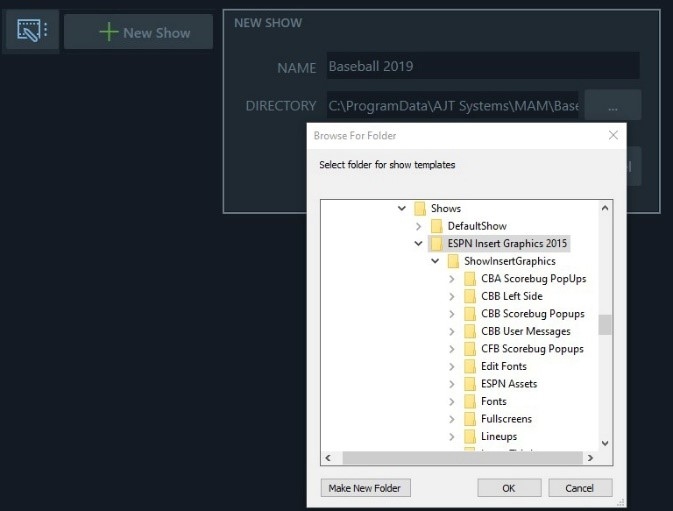

- Save the template and add it to the baseball SportApp via the insert editor. If a show isn't created, make one and point to the location of the ESPN insert graphic 2015 folder. To create a new show, click on the icon to the right of the default show drop down. Point to the directory that contains the insert graphic templates.
- When the template is loaded in the insert editor, the layer shows as FG2 instead of FG.
KB ID: DD4566811
