Show Control System: How do I control VP-6000 inputs via script buttons?

Topic

  • Display Studio scripts to execute triggers for VP-6000 inputs
  • Show Control's Display Studio script buttons

Environment

  • Product:
  • Components: VP-6000 (version 9 or later), Display Studio (version 2.5 or later)
  • Control System: Show Control System (SCS)



Steps

Verify input

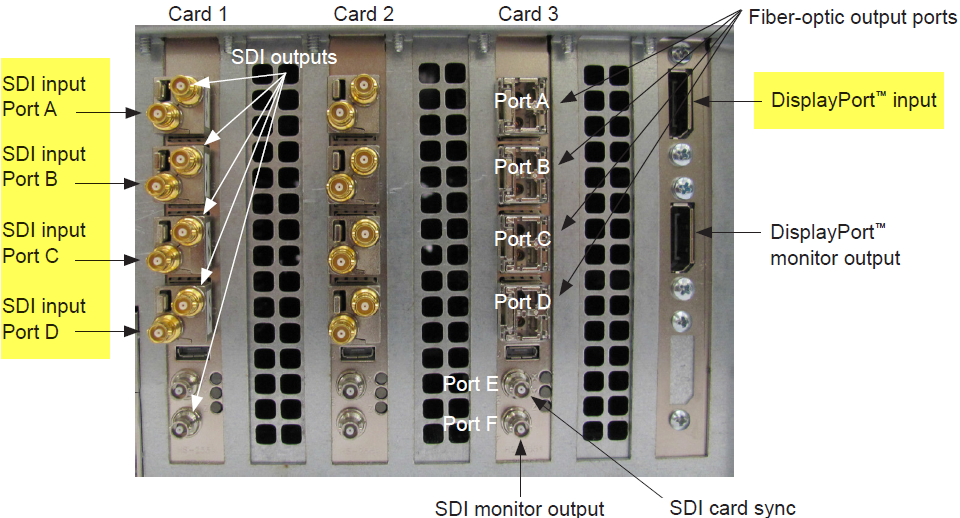

Each VP-6000 has 1 Display Port input (typically used by the DMP-8000) and can have up to 4 SDI inputs (A-D)

6000inputports - no SDI e.png

Create a Script button in Display Studio.

Right click, select New button.

Add Line

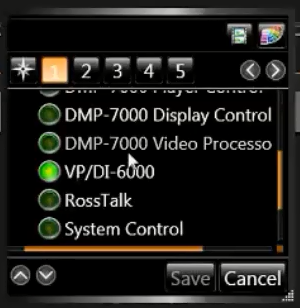

Step 1: Choose VP/DI-6000

 Show Control trigger script.png
Step 2: Check the appropriate 6000 device.
Step 3: Choose Execute Trigger.  This will actively pull the list of triggers that are configured in the VP-6000.

Show Control trigger script2.png
Step 4: Locate the desired trigger from the list, and save the line.

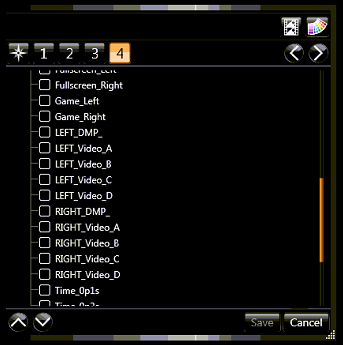

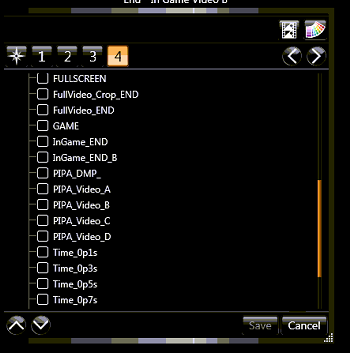

VP-6000 PIPA Execute Trigger options.PNGVP-6000 Source Name Execute Trigger options.PNG

Based on your configuration, you may have sources that have custom names like the screenshot on the right. Source names should always end with "Video_A" with the last letter changing for each SDI input.

 Examples are listed as:
Trigger Name    = Source
PIPA_Video_A      = SDI A
PIPA_Video_B      = SDI B
PIPA_DMP_          = DMP-8000 only, no video sources/layers are shown

If you want multiple triggers, a new line will need to be added.

The plug in for VP-6000 & DI-6000 needs to be selected during Display Studio install, See Display Studio Trigger Widget: How to install or uninstall widgets or plugins?

If there is a dual looks package, for instance if the config.js file has a "FullscreenA" and "FullscreenB", the VP needs to be first initialized by sending the command trigger "init". So in addition to creating buttons to trigger the different looks, a button would be required to initialize the VP as well.

Additional Resources
6000 Processor: How to configure an input via the user interface?

KB ID: DD3772150
