Daktronics

Scoreboard, Soccer, Corner kicks displaying instead of saves on scoreboard, Change setting

Potential Symptoms

  • Saves button works on console, but doesn't illuminate anything on scoreboard.
  • In order to get saves section to light up on scoreboard, have to press corner kick buttons.
  • Corner kicks is displaying on the scoreboard in both Home and Guest section instead of Saves.

Environment

  • Product Family: Scoreboards
  • Product: SO-2013, SO-2019, SO-2021, SO-2023, MS-2009, MS-2027 and MS-2031. Possibly MS-2024 and MS-2918
  • Component:
  • Control System: All Sport 5000

Cause

  • Incorrect setting on all sport console.

Resolution

  1. Press MENU.
  2. Press the down arrow until you see EDIT SETTINGS and then press ENTER.

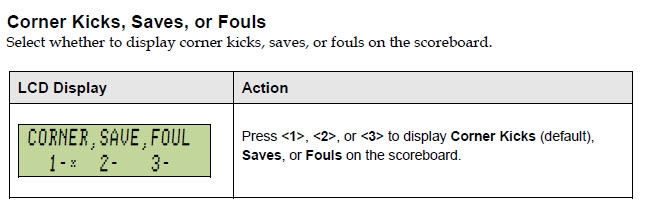

  3. Press down until Corner, Save, Foul is display.
  4. Press 2 on the number pad for Saves to be displayed on the scoreboard instead of corner kicks.



KB ID: DD2104557
