Freeform​ LED Display Elements

Daktronics ProPixel freeform products use mountable LED elements to transform ordinary structures into stunning visual landmarks. A flexible mounting platform allows designers to transform any structure into a full-motion video display guaranteed to leave a lasting impression.



Features

  • Accent any structure with a thin, lightweight element profile.
  • Offer up to 75% viewing transparency with a flexible mesh mounting platform.
  • Mount elements from either the front or the rear for quick, easy installation.
  • Protect elements from harsh weather with sealed connectors and housing (IP 67).
  • Adjust multimedia feeds to fit any display configuration with easy pixel mapping.
  • Show an endless variety of full-motion video, animations, color washes and much more.
  • Combine ProPixel elements with other products to bring any creative concept to life.



Not sure what a freeform element is?



What's the difference between normal LED video technology and freeform LED technology? What is the best product for you? Read our freeform education guide to learn more.

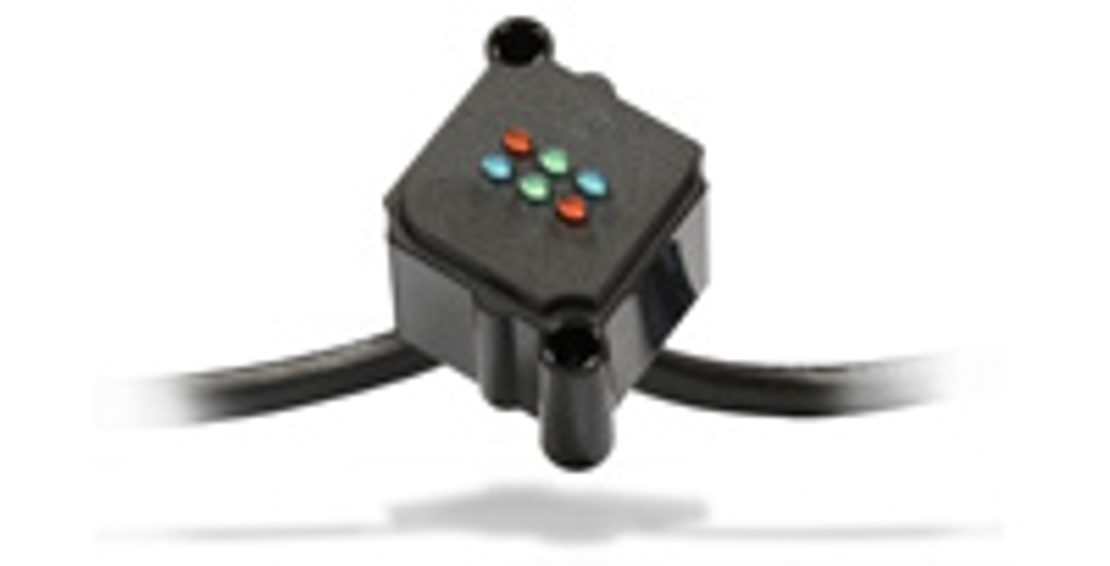

PCX-35 LED Pucks

Designed with architectural lighting and channel letters in mind, the ProPixel® PCX-35 mini-puck features a compact design that results in a versatile product suitable for a variety of applications.

Specifications

Model:

PCX-35

Pixel Configuration:

1 red, 1 green, 1 blue LED

Lifetime (.5 brightness):

75,000 hours

Pixel Intensity:

6.80 candelas

Horizontal Viewing Angle:

140o (+/-70o off center)

Vertical Viewing Angle:

70o (+35o off center)

Image Processing:

10-bit (1.07 billion colors)

PCX-35




PCX-75 LED Pucks

A flexible, puck-shaped design allows PCX-75 elements to create stunning, three-dimensional video screens. Ideal for larger applications requiring medium-range to long-range viewing.

Specifications

Model:

PCX-75

Pixel Configuration:

8 red, 6 green, 6 blue LED

Lifetime (.5 brightness):

75,000 hours

Pixel Intensity:

31 candelas

Horizontal Viewing Angle:

110o (+/-55o off center)

Vertical Viewing Angle:

50o (+25o off center)

Image Processing:

10-bit (1.07 billion colors)

PCX-35

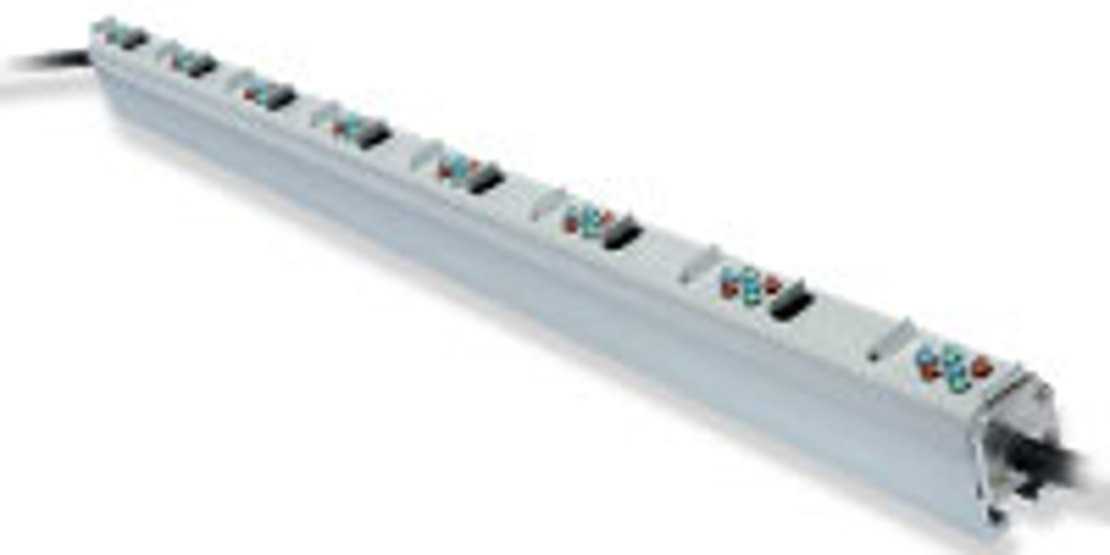

PSX-62 LED Sticks

PSX-62 LED sticks are a flexible freeform display solution for a wide variety of applications both large and small.

Specifications

Model:

PSX-62

Line-and-Column Spacing:

62.5 mm (2.46")

Pixel Configuration:

2 red, 2 green, 2 blue LEDs

Lifetime (.5 brightness):

75,000 hours

Pixel Intensity:

17.8 candelas

Horizontal Viewing Angle:

110o (+/-55o off center)

Vertical Viewing Angle:

50o (+25o off center)

Image Processing:

16-bit (281 trillion colors)

PCX-62

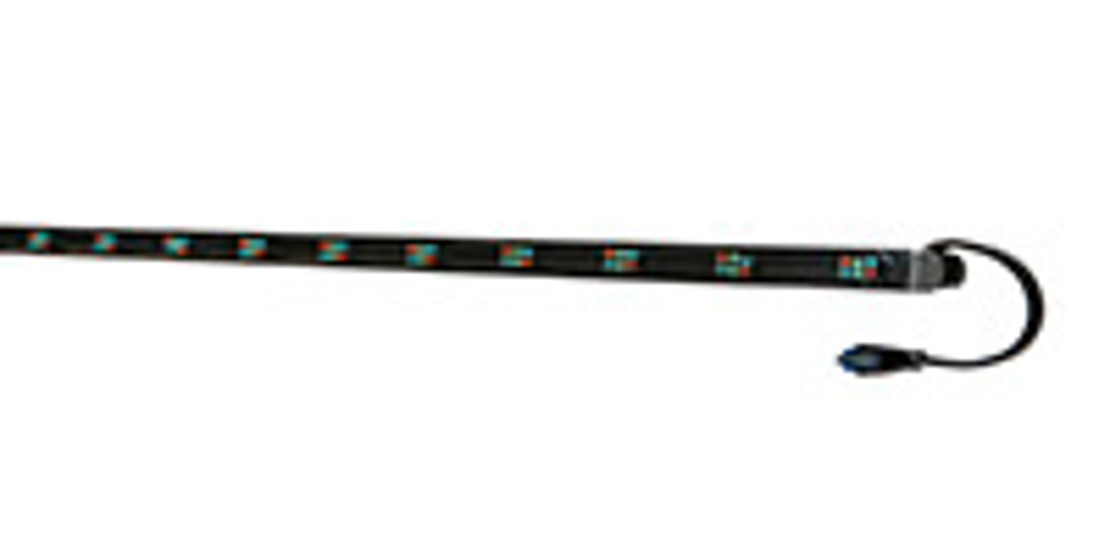

PSX-125 LED Sticks

PSX-125 elements offer a versatile, cost-effective LED video solution for larger creative applications. Ideal for larger projects requiring a longer viewing distance.

Specifications

Model:

PSX-125

Line-and-Column Spacing:

125 mm (4.9")

Pixel Configuration:

4 red, 3 green, 3 blue LEDs

Lifetime (.5 brightness):

75,000 hours

Pixel Intensity:

19.5 candelas

Horizontal Viewing Angle:

110o (+/-55o off center)

Vertical Viewing Angle:

50o (+25o off center)

Image Processing:

16-bit (281 trillion colors)

PCX-125
