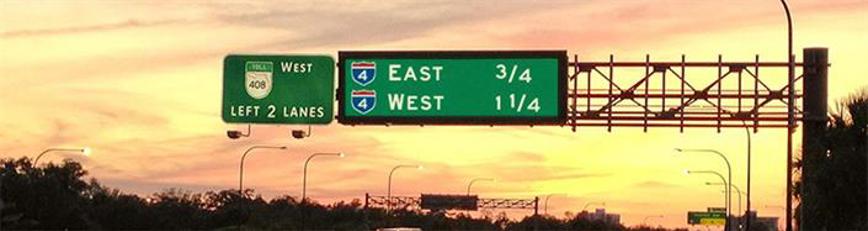

Orlando Orange County Expressway Authorityhttp://www.daktronics.com/SiteCollectionBanners/Forms/DispForm.aspx?ID=315Orlando Orange County Expressway AuthorityOrlandoGP0|#59d493f2-76df-4cf1-b8c1-b7110c5df73b;L0|#059d493f2-76df-4cf1-b8c1-b7110c5df73b|Florida:FL;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d

Vanguard® VF-2020 Walk-In Dynamic Message Signs

Reliable Operation. Safe Maintenance.

The VF-2020 increases your return on investment with a safer, easily-maintained design. Daktronics quality engineering and customer service reduce downtime — allowing your agency to provide vital information to every passing traveler.

Features and Benefits

Walk-In DMS VF-2020 Rendering
  • Convenient access for maintenance personnel
  • Safe working environment with OSHA tie-offs, ventilation and lighting
  • Open workspace and organized components for reduced maintenance time
  • Tough aluminum mask for superior contrast and minimal glare
  • Polycarbonate sheet protects pixels from the elements
  • Full monitoring capability with complete diagnostics for systems and pixels
  • Wide range of standard models with pixel matrices from 27x75 to 96x432
  • Positive-pressure, forced-air ventilation system for installation longevity
  • Full-color or monochrome amber models
  • Auxiliary control panel for simple maintenance and control
  • Meets industry standards and codes such as NTCIP 1203 v02, NEMA TS-4, AASHTO, ANSI/AWS, D1.2-97 Structural Welding Code, UL, UL Green Leaf, FCC and NEC

Model Specifications

Visit the VF-2020 Model Specifications web page to download spec sheets and shop drawings.

DMS Model Specifications

Markets Using This Product

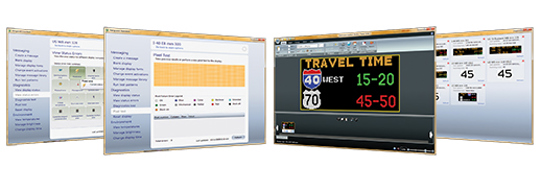

Vanguard V4 software icon

Software And Controllers

The feature-rich Vanguard Central Control Software (optional) makes remote operation simple. The VFC-3000 (standard) relays instructions reliably as the most powerful Dynamic Message Sign controller in the ITS industry. Together, they provide continuously tested, NTCIP-compliant control to Daktronics DMS. Auxiliary Control Panel (optional) and DMS Equipment Cabinet (optional) are also available.

Learn more about DMS Controllers and Vanguard® v4 Control Software.

Daktronics On-Going DMS Support

SUPPORT NEAR YOU

Certified technical service specialists provide industry-acclaimed local support from nationwide Sales and Services offices

On-site Support Daktronics technicians provide on-site service, installation support, and testing

HELP DESK

Phone support from experienced help desk professionals.

Daktronics has a large inventory of spare parts ready for quick shipment

EXTENDED SERVICE

Tiered extended service levels available to best fit your project requirements.
