BA-2029 Scoreboard RenderingBA-2029 Scoreboard Rendering

BA-2029

Baseball Scoreboard

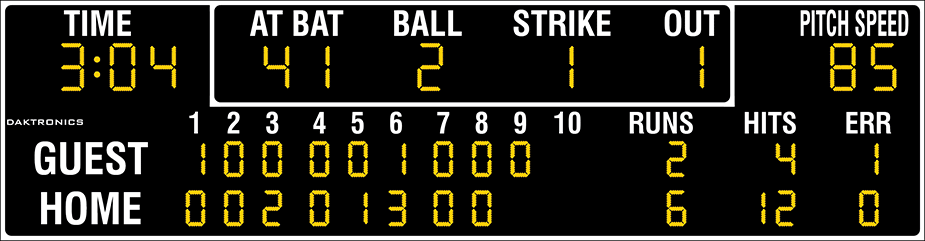

This outdoor LED baseball/softball scoreboard displays HOME and GUEST team scores for up to 10 innings, total RUNS and HITS to 99 and ERR (errors) to nine for each team, AT BAT to 99, BALL to three, STRIKE to two, OUT to two and PITCH SPEED to 199. Four-digit TIME clock can display either time of day or time of game. Scoreboard shown with optional striping and amber PanaView® digits.

BA-2029

Specifications

Sport Scored: Baseball
Digit Sizes:24", 18"
Dimensions: H = 9' 4" W = 36' 0" D = 0' 8"
Control:All Sport 5000
Digit Technology:PanaView
Construction: Alcoa aluminum alloy 5052
Cabinet Color: 150+ Colors

Product Documents

Weather-Sealed Digits

Don't let corrosion bring your scoreboard down on game day. Daktronics weather-sealed digits significantly increase reliability and product performance. No other LED scoreboard manufacturer offers this kind of protection.

  • 1/8 inch layer of weather-tight silicone gel
  • Applied to front and back of internal digits
  • Completely seals out moisture
  • Unmatched resistance to the harshest of conditions
View Outdoor Digits


Scoreboard Enhancements

Scoreboard Options & Related Products

Your main scoreboard provides vital information, but the enhancements surrounding the scoreboard make the most impact in a facility. Daktronics is constantly developing new options and enhancements to accompany scoreboards. Browse through your scoreboard options to see how you can create a unique display.
