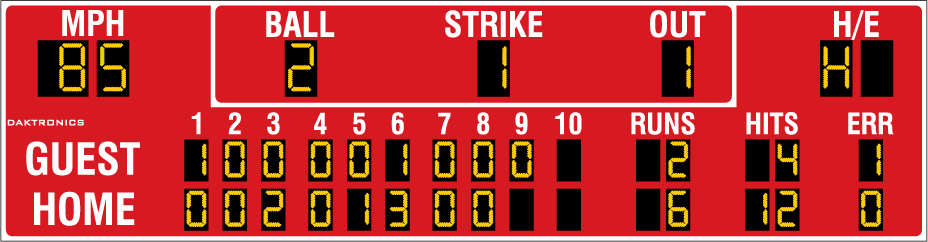

BA-2028 Scoreboard RenderingBA-2028 Scoreboard Rendering

BA-2028

Baseball Scoreboard

This outdoor LED baseball/softball scoreboard displays HOME and GUEST team scores for up to 10 innings, total RUNS and HITS to 99 and ERR (errors) to nine for each team, MPH to 199, BALL to three, STRIKE to two, OUT to two and H/E (hit or error) with field position number for the error. Scoreboard can show KPH instead of MPH, as well as AT BAT or PITCH COUNT in place of H/E. Scoreboard shown with optional striping and amber PanaView® digits.

BA-2028

Specifications

Sport Scored: Baseball
Digit Sizes: 24", 18"
Dimensions: H = 9' 4" W = 36' 0" D = 0' 8"
Control: All Sport 5000
Digit Technology: PanaView
Construction: Alcoa aluminum alloy 5052
Cabinet Color: 150+ Colors





St. Paul Saints St. Paul Saints WP-19208St. PaulGP0|#497a7b1b-a876-482f-ab01-45d030a85425;L0|#0497a7b1b-a876-482f-ab01-45d030a85425|Minnesota:MN;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d105588
Jackson Prep SchoolJackson Prep SchoolWP-18867JacksonGP0|#23e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e;L0|#023e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e|Mississippi:MS;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626dJAC005

 Manuals





Outdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD3000541.pdfOutdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)2128800
Outdoor LED Scoreboards Installation Manual (DD2956757)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2956757.pdfOutdoor LED Scoreboards Installation Manual (DD2956757)3661077
P1647 Multi-Section LED Scoreboards Installation Manual (DD1969938)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD1969938.pdfP1647 Multi-Section LED Scoreboards Installation Manual (DD1969938)3052237

 Specifications





BA-2028 Architect Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD1972403.docBA-2028 Architect Specifications68608
BA-2028 Product Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD1972415.pdfBA-2028 Product Specifications1723292

 Literature





Scoreboard Cataloghttp://www.daktronics.com/Web Documents/HSPR-Documents/Guides_Lit/ScoreboardCatalog.pdfScoreboard Catalog19307332

Weather-Sealed Digits

Don't let corrosion bring your scoreboard down on game day. Daktronics weather-sealed digits significantly increase reliability and product performance. No other LED scoreboard manufacturer offers this kind of protection.

  • 1/8 inch layer of weather-tight silicone gel
  • Applied to front and back of internal digits
  • Completely seals out moisture
  • Unmatched resistance to the harshest of conditions
View Outdoor Digits
