TN-2653

Multi-Court Tennis Scoreboard

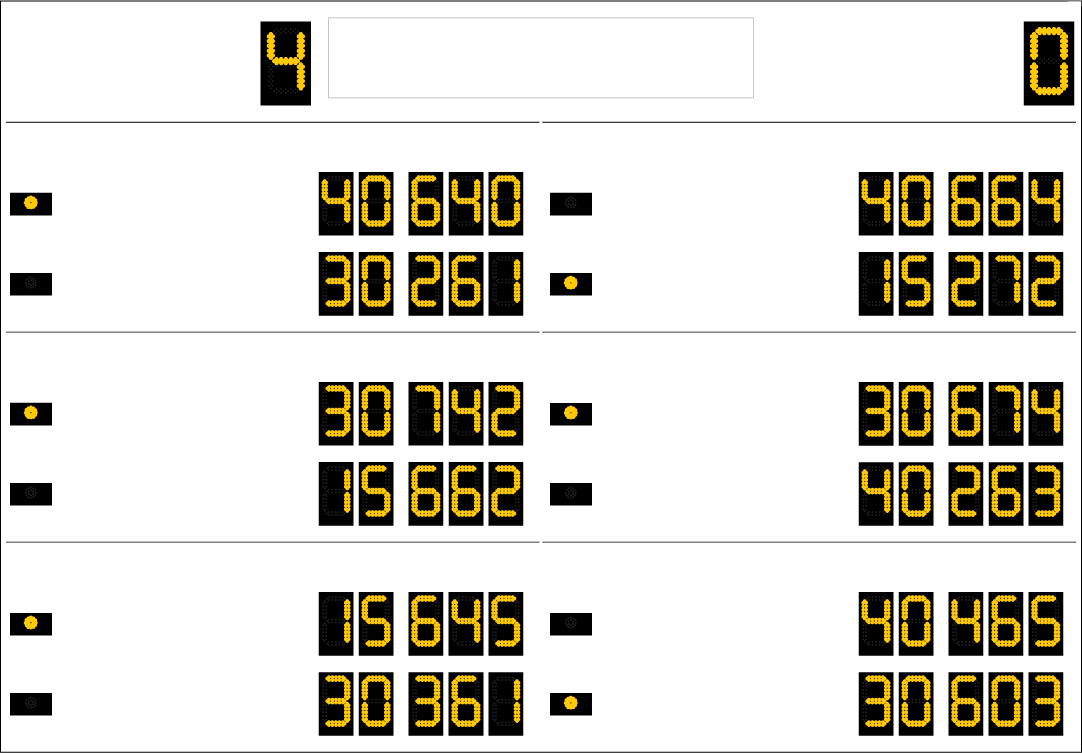

This multi-court outdoor LED tennis scoreboard displays total HOME and GUEST team score to nine as well as HOME and GUEST serve indicators, game score and set scores to nine for up to three sets on six courts. Game score is displayed as 0, 15, 30, 40, Ad, or tiebreak scoring (1-99). Optional team name message centers (TNMCs) can display team or player names. Add an optional four-digit clock to display Time of Day. Scoreboard shown with amber PanaView® digits and optional striping.

Specifications

Sport Scored: Tennis
Digit Sizes: 15", 10"
Dimensions: H = 12' 6" W = 18' 0" D = 0' 8"
Control: RC-100, DakTennis Software
Digit Technology: PanaView
Construction: Alcoa aluminum alloy 5052
Cabinet Color: 150+ Colors





University of GeorgiaUniversity of GeorgiaWP-12412AthensGP0|#a342024b-301e-4c61-a6d1-3d0385d9c850;L0|#0a342024b-301e-4c61-a6d1-3d0385d9c850|Georgia:GA;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626dUGAAGA

 Manuals





Outdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD3000541.pdfOutdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)2128800
Outdoor LED Scoreboards Installation Manual (DD2956757)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2956757.pdfOutdoor LED Scoreboards Installation Manual (DD2956757)3661077

 Specifications





TN-2653 Architect Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/SL08629.docTN-2653 Architect Specifications67584
TN-2653 Product Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD2731391.pdfTN-2653 Product Specifications1891118

 Literature





Total Tennis Solutions Brochurehttp://www.daktronics.com/Web Documents/HSPR-Documents/Guides_Lit/Total Tennis Solutions Brochure.pdfTotal Tennis Solutions Brochure2842239

Weather-Sealed Digits

Don't let corrosion bring your scoreboard down on game day. Daktronics weather-sealed digits significantly increase reliability and product performance. No other LED scoreboard manufacturer offers this kind of protection.

  • 1/8 inch layer of weather-tight silicone gel
  • Applied to front and back of internal digits
  • Completely seals out moisture
  • Unmatched resistance to the harshest of conditions
View Outdoor Digits


Scoreboard Enhancements

Scoreboard Options & Related Products

Your main scoreboard provides vital information, but the enhancements surrounding the scoreboard make the most impact in a facility. Daktronics is constantly developing new options and enhancements to accompany scoreboards. Browse through your scoreboard options to see how you can create a unique display.
