TN-2603

Single-Court Tennis Scoreboard

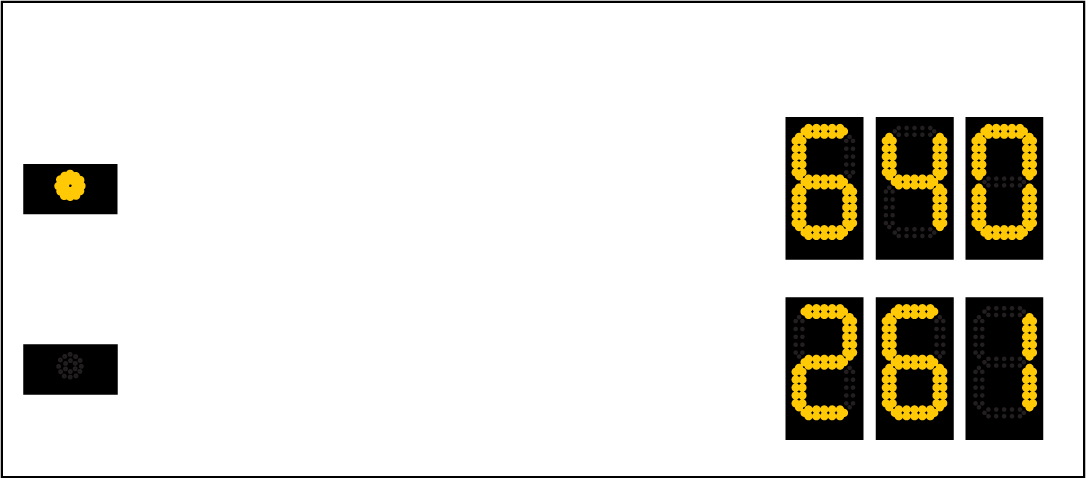

This outdoor LED tennis scoreboard displays HOME and GUEST serve indicators and set scores to nine for up to three sets. The COURT # caption ranges from 1-6 to allow for use on different courts. Optional team name message centers (TNMCs) can display team or player names. Scoreboard shown with amber PanaView® digits and optional striping.

TN-2603

Specifications

Sport Scored: Tennis
Digit Sizes: 10"
Dimensions: H = 3' 6" W = 8' 0" D = 0' 8"
Control: RC-100, All Sport 5000
Digit Technology: PanaView
Construction: Alcoa aluminum alloy 5052
Cabinet Color: 150+ Colors





Virginia CommonwealthVirginia CommonwealthWP-15133RichmondGP0|#d41329c4-c9e4-4821-9a6b-70c93111e272;L0|#0d41329c4-c9e4-4821-9a6b-70c93111e272|Virginia:VA;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d108906

 Manuals





Outdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD3000541.pdfOutdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)2128800
Outdoor LED Scoreboards Installation Manual (DD2956757)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2956757.pdfOutdoor LED Scoreboards Installation Manual (DD2956757)3661077
Single-Court Outdoor LED Tennis Scoreboards Display Manual (DD2172229)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2172229.pdfSingle-Court Outdoor LED Tennis Scoreboards Display Manual (DD2172229)4487823

 Specifications





TN-2603 Architect Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/SL08612.docTN-2603 Architect Specifications66048
TN-2603 Product Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD2731384.pdfTN-2603 Product Specifications987780

 Literature





Total Tennis Solutions Brochurehttp://www.daktronics.com/Web Documents/HSPR-Documents/Guides_Lit/Total Tennis Solutions Brochure.pdfTotal Tennis Solutions Brochure6975329

Weather-Sealed Digits

Don't let corrosion bring your scoreboard down on game day. Daktronics weather-sealed digits significantly increase reliability and product performance. No other LED scoreboard manufacturer offers this kind of protection.

  • 1/8 inch layer of weather-tight silicone gel
  • Applied to front and back of internal digits
  • Completely seals out moisture
  • Unmatched resistance to the harshest of conditions
