MS-2024

Multisport Scoreboard

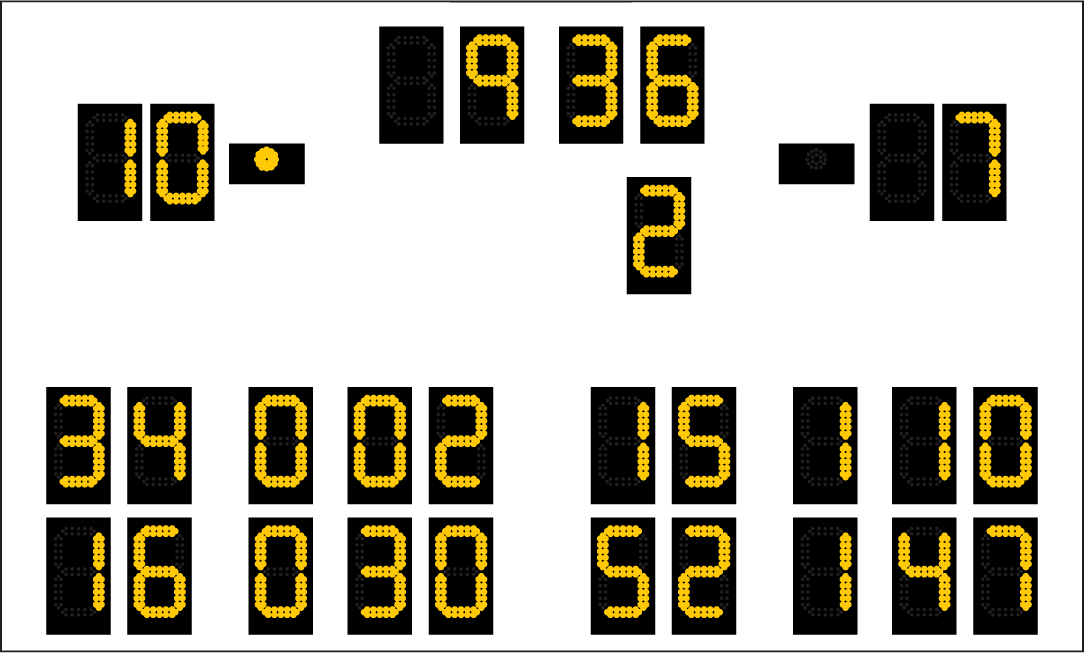

This outdoor LED multisport scoreboard displays period time to 99:59, HOME and GUEST scores to 99, PERIOD to nine, PLAYER number to 99 and PENALTY time to 9:59 for up to two players on each team and indicates team penalty (PEN). Scoreboard is ideal for lacrosse or field hockey. When period time is less than one minute, the scoreboard displays time to 1/10 of a second. Scoreboard shown with optional striping and amber PanaView® digits.

Specifications

Sport Scored: Field Hockey, Football, Hockey, Lacrosse
Digit Sizes: 10"
Dimensions: H = 6' 0" W = 10' 0" D = 0' 8"
Control: All Sport 5000
Digit Technology: PanaView
Construction: Alcoa aluminum alloy 5052
Cabinet Color: ​150+ Colors





 Manuals





Outdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD3000541.pdfOutdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)2128800
Outdoor LED Scoreboards Installation Manual (DD2956757)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2956757.pdfOutdoor LED Scoreboards Installation Manual (DD2956757)3661077
P1647 Single-Section Outdoor LED Scoreboards Installation Manual (DD2118213)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2118213.pdfP1647 Single-Section Outdoor LED Scoreboards Installation Manual (DD2118213)2465951

 Specifications





MS-2024 Architect Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD1745303.docMS-2024 Architect Specifications67584
MS-2024 Product Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD1745306.pdfMS-2024 Product Specifications1105080

 Literature





Scoreboard Cataloghttp://www.daktronics.com/Web Documents/HSPR-Documents/Guides_Lit/ScoreboardCatalog.pdfScoreboard Catalog19832543

Weather-Sealed Digits

Don't let corrosion bring your scoreboard down on game day. Daktronics weather-sealed digits significantly increase reliability and product performance. No other LED scoreboard manufacturer offers this kind of protection.

  • 1/8 inch layer of weather-tight silicone gel
  • Applied to front and back of internal digits
  • Completely seals out moisture
  • Unmatched resistance to the harshest of conditions
View Outdoor Digits


Scoreboard Enhancements

Scoreboard Options & Related Products

Your main scoreboard provides vital information, but the enhancements surrounding the scoreboard make the most impact in a facility. Daktronics is constantly developing new options and enhancements to accompany scoreboards. Browse through your scoreboard options to see how you can create a unique display.
