BA-2127 Scoreboard RenderingBA-2127 Scoreboard Rendering

BA-2127

Baseball Scoreboard

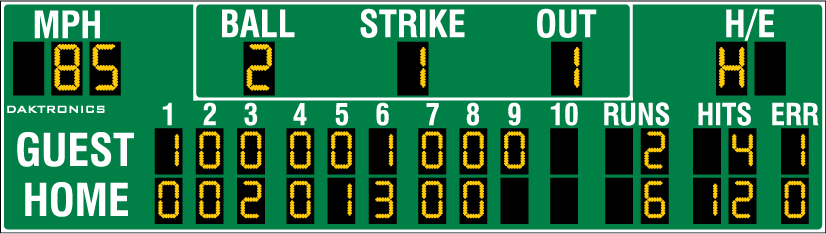

This outdoor LED baseball/softball scoreboard displays HOME and GUEST team scores for up to 10 innings, total RUNS and HITS to 99 and ERR (errors) to nine for each team, MPH to 199, BALL to three, STRIKE to two, OUT to two and H/E (hit or error) with field position number for the error. Scoreboard can show KPH instead of MPH, as well as AT BAT or PITCH COUNT in place of H/E. Scoreboard shown with optional striping and amber PanaView® digits.

Specifications

Sport Scored: Baseball
Digit Sizes: 18", 15"
Dimensions: H = 7' 0" W = 25' 0" D = 0' 8"
Control: All Sport 5000
Digit Technology: PanaView
Construction: Alcoa aluminum alloy 5052
Cabinet Color: 150+ Colors





 Manuals





Outdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD3000541.pdfOutdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)2128800
Outdoor LED Scoreboards Installation Manual (DD2956757)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2956757.pdfOutdoor LED Scoreboards Installation Manual (DD2956757)3661077

 Specifications





BA-2127 Architect Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD2587755.docBA-2127 Architect Specifications67072
BA-2127 Product Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD2594535.pdfBA-2127 Product Specifications1195608

 Literature





Scoreboard Cataloghttp://www.daktronics.com/Web Documents/HSPR-Documents/Guides_Lit/ScoreboardCatalog.pdfScoreboard Catalog19832543

Weather-Sealed Digits

Don't let corrosion bring your scoreboard down on game day. Daktronics weather-sealed digits significantly increase reliability and product performance. No other LED scoreboard manufacturer offers this kind of protection.

  • 1/8 inch layer of weather-tight silicone gel
  • Applied to front and back of internal digits
  • Completely seals out moisture
  • Unmatched resistance to the harshest of conditions
View Outdoor Digits


Scoreboard Enhancements

Scoreboard Options & Related Products

Your main scoreboard provides vital information, but the enhancements surrounding the scoreboard make the most impact in a facility. Daktronics is constantly developing new options and enhancements to accompany scoreboards. Browse through your scoreboard options to see how you can create a unique display.
