BA-2019 Scoreboard RenderingBA-2019 Scoreboard Rendering

BA-2019

Baseball Scoreboard

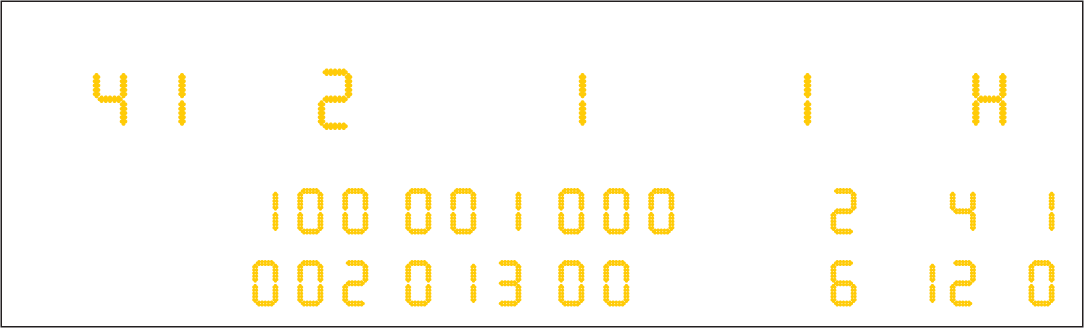

This outdoor LED baseball/softball scoreboard displays HOME and GUEST team scores for up to 10 innings, total RUNS and HITS to 99 and ERR (errors) to nine for each team, AT BAT to 99, BALL to three, STRIKE to two, OUT to two and H/E (hit or error) with field position number for the error. Scoreboard can show TIME or PITCH COUNT instead of AT BAT, as well as AT BAT or PITCH COUNT in place of H/E. Scoreboard shown with optional striping and amber PanaView® digits.

BA-2019

Specifications

Sport Scored: Baseball
Digit Sizes: 15", 10"
Dimensions: H = 6' 0" W = 20' 0" D = 0' 8"
Control: All Sport 5000
Digit Technology: PanaView
Construction: Alcoa aluminum alloy 5052
Cabinet Color: 150+ Colors

​​





Durango High School Durango High School WP-20725DurangoGP0|#c4269f4a-286a-448e-95e3-ca44549b0ea2;L0|#0c4269f4a-286a-448e-95e3-ca44549b0ea2|Colorado:CO;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d118063-001
Muncie Central HSMuncie Central HSWP-19552MuncieGP0|#26c89b17-7a8b-4a70-84cf-32507f7d49fd;L0|#026c89b17-7a8b-4a70-84cf-32507f7d49fd|Indiana:IN;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626dMUN001-001
Monrovia High SchoolMonrovia High SchoolWP-18994MonroviaGP0|#26c89b17-7a8b-4a70-84cf-32507f7d49fd;L0|#026c89b17-7a8b-4a70-84cf-32507f7d49fd|Indiana:IN;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d109829
Newport High SchoolNewport High SchoolWP-18642BellevueGP0|#7c520e2c-47c6-452b-b5ab-a2a8a71c49cd;L0|#07c520e2c-47c6-452b-b5ab-a2a8a71c49cd|Washington:WA;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d109282
Nampa Christian SchoolsNampa Christian SchoolsWP-19446NampaGP0|#6604ec45-873a-4fe5-af6d-0f3567fafea0;L0|#06604ec45-873a-4fe5-af6d-0f3567fafea0|Idaho:ID;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626dNCH001-004
Rio Grande City HSRio Grande City HSWP-16968Rio Grande CityGP0|#4c6c24d8-01c5-41ea-9d51-ff425c94d2c4;L0|#04c6c24d8-01c5-41ea-9d51-ff425c94d2c4|Texas:TX;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d
Iowa Central CollegeIowa Central CollegeWP-16437Fort DodgeGP0|#932fe770-6a44-4dc6-accf-5e003145fae1;L0|#0932fe770-6a44-4dc6-accf-5e003145fae1|Iowa:IA;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d
Eastmont High SchoolEastmont High SchoolWP-16158East WenatcheeGP0|#7c520e2c-47c6-452b-b5ab-a2a8a71c49cd;L0|#07c520e2c-47c6-452b-b5ab-a2a8a71c49cd|Washington:WA;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d
West Point High SchoolWest Point High SchoolWP-15547West PointGP0|#23e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e;L0|#023e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e|Mississippi:MS;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d
Kosciusko High SchoolKosciusko High SchoolWP-15530KosciuskoGP0|#23e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e;L0|#023e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e|Mississippi:MS;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d
Hamilton High SchoolHamilton High SchoolWP-15282HamiltonGP0|#23e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e;L0|#023e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e|Mississippi:MS;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d
Copiah AcademyCopiah AcademyWP-15187GallmanGP0|#23e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e;L0|#023e4fb01-9fc8-4a0c-bdf3-d4c58ed1959e|Mississippi:MS;GTSet|#40ec3996-05a4-4b29-be11-accbb09263e3;GPP|#250d4c9d-ec42-43d6-b50b-21dddfa79496GP0|#bcb51922-bc5d-4f17-b95b-de5455d1da85;L0|#0bcb51922-bc5d-4f17-b95b-de5455d1da85|United States:USA;GTSet|#3e339a2e-a8ca-45f0-a9b0-4c41af93626d

 Manuals





Outdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD3000541.pdfOutdoor LED Scoreboards w/ Gyrus Driver Service Manual (DD3000541)2128800
Outdoor LED Scoreboards Installation Manual (DD2956757)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2956757.pdfOutdoor LED Scoreboards Installation Manual (DD2956757)3661077
Single-Section Outdoor Generation IV LED Scoreboards Display Manual (ED-16959)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/ED-16959.pdfSingle-Section Outdoor Generation IV LED Scoreboards Display Manual (ED-16959)17467967
Single-Section Outdoor LED Scoreboards Service Manual (DD1552971)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD1552971.pdfSingle-Section Outdoor LED Scoreboards Service Manual (DD1552971)1893266
Single-Section Outdoor LED Scoreboards Installation Manual (DD1755790)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD1755790.pdfSingle-Section Outdoor LED Scoreboards Installation Manual (DD1755790)2002056
P1647 Single-Section Outdoor LED Scoreboards Installation Manual (DD2118213)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/DD2118213.pdfP1647 Single-Section Outdoor LED Scoreboards Installation Manual (DD2118213)2465951
Single-Section Outdoor LED Scoreboards Display Manual (ED-18754)http://www.daktronics.com/Web Documents/Customer-Service-Manuals/ED-18754.pdfSingle-Section Outdoor LED Scoreboards Display Manual (ED-18754)17547642

 Specifications





BA-2019 Architect Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/SL07439.docBA-2019 Architect Specifications68096
BA-2019 Product Specificationshttp://www.daktronics.com/Web Documents/HSPR-Documents/DD2118182.pdfBA-2019 Product Specifications1229021

 Literature





Scoreboard Cataloghttp://www.daktronics.com/Web Documents/HSPR-Documents/Guides_Lit/ScoreboardCatalog.pdfScoreboard Catalog19307332

Weather-Sealed Digits

Don't let corrosion bring your scoreboard down on game day. Daktronics weather-sealed digits significantly increase reliability and product performance. No other LED scoreboard manufacturer offers this kind of protection.

  • 1/8 inch layer of weather-tight silicone gel
  • Applied to front and back of internal digits
  • Completely seals out moisture
  • Unmatched resistance to the harshest of conditions
View Outdoor Digits
